MY1B-Z1

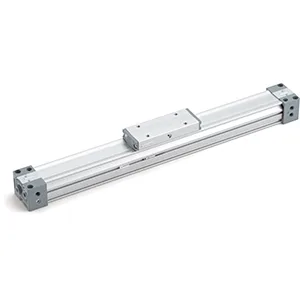

MY1B-Z1, Mechanical Joint Milsiz Silindir, Temel tip, w/High Load Shock Absorber & Adjustment Bolt, H Series

MY1B-Z1 ürün ailesinin özelliklerini, model seçeneklerini ve teknik belgelerini inceleyin. Uygulamanıza uygun tam sipariş kodu için Pnoneks ile iletişime geçin.

SMC ·Milsiz pnömatik silindir ve iş elemanları

Uygulamanız için teklif alın.

Sipariş kodunuzu ve adedi paylaşın; fiyat ve teslim süresini birlikte netleştirelim.

MY1B-Z1 seçerken nelere dikkat edilmeli?

MY1B-Z1 için ürün seçimi: Pnömatik iş elemanları grubundaki bu kaydı değerlendirirken tam sipariş kodunu ve mevcut sisteminizin koşullarını birlikte kontrol edin. Bore Size, Port Thread, Piping, Stroke, Stroke Adjustment Unit, Auto Switch, Lead Wire or Pre-wired Connector, Number, Made to Order bilgileriyle, ihtiyacınız olan adet ve uygulama notunu Pnoneks’e iletebilirsiniz. Kesin uyumluluk ve teslim süresi teklif sırasında doğrulanır.

ÜRÜN HAKKINDA

Seçim için temel bilgiler.

Üretici: SMC
Seri: MY1B-Z1
Ürün grubu: Pnömatik iş elemanları
İşlev: Milsiz pnömatik silindir ve iş elemanları
Uygulama alanları: Uygunluk için teknik özellikler ve uygulama koşulları birlikte değerlendirilir.
Seçim parametreleri: Bore Size, Port Thread, Piping, Stroke, Stroke Adjustment Unit, Auto Switch, Lead Wire or Pre-wired Connector, Number, Made to Order

Kesin ölçüler, çalışma aralıkları ve uyumluluk tam sipariş koduna göre değişir. Teknik seçim için ilgili SMC dokümanını ve uygulama koşullarını birlikte değerlendirin.

TEKNİK ÜRÜN BİLGİLERİ

Özellikler ve model seçenekleri

Aşağıdaki teknik ifadeler ve değerler üreticinin özgün dilinde korunmuştur. Seçenekler seri içindeki alternatifleri gösterir; her seçeneğin birlikte kullanılabileceği anlamına gelmez. Tam sipariş kodunu teklif sırasında doğrulayalım.

Bore sizes: 25, 32, 40 mm.
Improved allowable load mass and moment. Up to 18 kg.
Minimal leakage seal construction.
Centralised piping.
Autoswitch capable.

Kaynakta sunulan seçim alanları
Parametre	Seçenekler / değerler
Bore Size	25mm · 32mm · 40mm
Port Thread	Rc · TN (NPT) · TF (G)
Piping	Standard · G (Centralized Piping Type)
Stroke	[100-2000-1] · [2001-5000-1]
Stroke Adjustment Unit	HA (Left: w/High Load Shock Absorber and Adjustment Bolt; Right: w/Adjustment Bolt) · H6A (Left: w/High Load Shock Absorber and Adjustment Bolt, Short Spacer; Right: w/Adjustment Bolt) · H7A (Left: w/High Load Shock Absorber and Adjustment Bolt, Long Spacer; Right: w/Adjustment Bolt) · HA6 (Left: w/High Load Shock Absorber and Adjustment Bolt; Right: w/Adjustment Bolt, Short Spacer) · H6A6 (Left: w/High Load Shock Absorber and Adjustment Bolt, Short Spacer; Right: w/Adjustment Bolt, Short Spacer) · H7A6 (Left: w/High Load Shock Absorber and Adjustment Bolt, Long Spacer; Right: w/Adjustment Bolt, Short Spacer) · HA7 (Left: w/High Load Shock Absorber and Adjustment Bolt; Right: w/Adjustment Bolt, Long Spacer) · H6A7 (Left: w/High Load Shock Absorber and Adjustment Bolt, Short Spacer; Right: w/Adjustment Bolt, Long Spacer) · H7A7 (Left: w/High Load Shock Absorber and Adjustment Bolt, Long Spacer; Right: w/Adjustment Bolt, Long Spacer) · HL (Left: w/High Load Shock Absorber and Adjustment Bolt; Right: w/Low Load Shock Absorber and Adjustment Bolt) · H6L (Left: w/High Load Shock Absorber and Adjustment Bolt, Short Spacer; Right: w/Low Load Shock Absorber and Adjustment Bolt) · H7L (Left: w/High Load Shock Absorber and Adjustment Bolt, Long Spacer; Right: w/Low Load Shock Absorber and Adjustment Bolt) · HL6 (Left: w/High Load Shock Absorber and Adjustment Bolt; Right: w/Low Load Shock Absorber and Adjustment Bolt, Short Spacer) · H6L6 (Left: w/High Load Shock Absorber and Adjustment Bolt, Short Spacer; Right: w/Low Load Shock Absorber and Adjustment Bolt, Short Spacer) · H7L6 (Left: w/High Load Shock Absorber and Adjustment Bolt, Long Spacer; Right: w/Low Load Shock Absorber and Adjustment Bolt, Short Spacer) · HL7 (Left: w/High Load Shock Absorber and Adjustment Bolt; Right: w/Low Load Shock Absorber and Adjustment Bolt, Long Spacer) · H6L7 (Left: w/High Load Shock Absorber and Adjustment Bolt, Short Spacer; Right: w/Low Load Shock Absorber and Adjustment Bolt, Long Spacer) · H7L7 (Left: w/High Load Shock Absorber and Adjustment Bolt, Long Spacer; Right: w/Low Load Shock Absorber and Adjustment Bolt, Long Spacer) · H (Left: w/High Load Shock Absorber and Adjustment Bolt; Right: w/High Load Shock Absorber and Adjustment Bolt) · H6H (Left: w/High Load Shock Absorber and Adjustment Bolt, Short Spacer; Right: w/Low Load Shock Absorber and Adjustment Bolt) · H7H (Left: w/High Load Shock Absorber and Adjustment Bolt, Long Spacer; Right: w/Low Load Shock Absorber and Adjustment Bolt) · HH6 (Left: w/High Load Shock Absorber and Adjustment Bolt; Right: w/High Load Shock Absorber and Adjustment Bolt, Short Spacer) · H6 (Left: w/High Load Shock Absorber and Adjustment Bolt, Short Spacer; Right: w/High Load Shock Absorber and Adjustment Bolt, Short Spacer) · H7H6 (Left: w/High Load Shock Absorber and Adjustment Bolt, Long Spacer; Right: w/High Load Shock Absorber and Adjustment Bolt, Short Spacer) · HH7 (Left: w/High Load Shock Absorber and Adjustment Bolt; Right: w/High Load Shock Absorber and Adjustment Bolt, Long Spacer) · H6H7 (Left: w/High Load Shock Absorber and Adjustment Bolt, Short Spacer; Right: w/High Load Shock Absorber and Adjustment Bolt, Long Spacer) · H7 (Left: w/High Load Shock Absorber and Adjustment Bolt, Long Spacer; Right: w/High Load Shock Absorber and Adjustment Bolt, Long Spacer)
Auto Switch	No Switch · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal · M9BA--Solid State Switch, Water Resist., 2 Wire, Horizontal · M9BAV--Solid State Switch, Water Resist., 2 Wire, Vertical · M9BV--Solid State Switch, Gen. Purpose, 2 Wire, Vertical · M9BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · M9BWV--Solid State Switch, 2-colour Indication, 2 Wire, Vertical · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal · M9NA--Solid State Switch, Water Resist., 3 Wire NPN, Horizontal · M9NAV--Solid State Switch, Water Resist, 3 Wire NPN, Perpendicular · M9NV--Solid State Switch, Gen. Purpose, 3 Wire NPN, Vertical · M9NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · M9NWV--Solid State Switch, 2-colour Indication, 3 Wire NPN, Vertical · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal · M9PA--Solid State Switch, Water Resist., 3 Wire PNP, Horizontal · M9PAV--Solid State Switch, Water Resist., 3 Wire PNP, Vertical · M9PV--Solid State Switch, Gen. Purpose, 3 Wire PNP, Vertical · M9PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · M9PWV--Solid State Switch, 2-colour Indication, 3 Wire PNP, Vertical · A90--Reed Switch, AC/DC Volt. <100, Horizontal · A90V--Reed Switch, AC/DC Volt. <100, Vertical · A93--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal · A93V--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Vertical · A96--Reed Switch, DC Volt. 4-8, LED, Horizontal · A96V--Reed Switch, DC Volt. 4-8, LED, Vertical
Lead Wire or Pre-wired Connector	0.5 m (Or None in the Case of No Switch) · L (3 m) · M (1m) · Z (5 m) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector) · SC (0.3 m Cord Length, M12-4 Pin Connector, 3 & 4 Out)
Number	2 pcs. (Or None in Case of No Switch) · S (1 pc.)
Made to Order	None · XB22 (Shock Absorber Soft Type Series RJ Type) · X168 (Helical Insert Thread)
