M5ALH

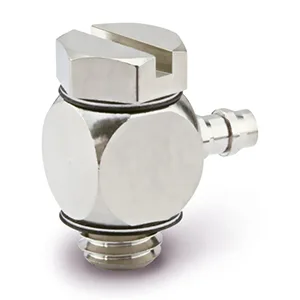

Specialty Fitting, Miniature, Barb Elbow, External Nut - M5ALH

Explore the features, model options and technical documentation for M5ALH. Contact Pnoneks to select the full part number for your application.

SMC ·Pneumatic Fittings

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting M5ALH

Selecting M5ALH: review the full part number and your system conditions when considering this Fittings & tubing record. Share Model, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: M5ALH
Product group: Fittings & tubing
Function: Pneumatic Fittings
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Model

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Simple connection/disconnection
High retaining force
Miniature size
Accepts many styles of plastic tubing

Selection fields published in the source
Parameter	Options / values
Model	M-5ALHN-4 (Port Size M5 x 0.8, Barb Elbow for Nylon Tubing (H), Tube Size Ø4 x Ø2.5) · M-5ALHN-6 (Port Size M5 x 0.8, Barb Elbow for Nylon Tubing (H), Tube Size Ø6 x Ø4) · M-5ALHU-3 (Port Size M5 x 0.8, Barb Elbow for Soft Tubing (H), Tube Size Ø3.18 x Ø2.18; Ø3.18 x Ø2) · M-5ALHU-4 (Port Size M5 x 0.8, Barb Elbow for Soft Tubing (H), Tube Size Ø4 x Ø2.5) · M-5ALHU-6 (Port Size M5 x 0.8, Barb Elbow for Soft Tubing (H), Tube Size Ø6 x Ø4)
