- Male Connector.
- Compact and light weight.
- Design flexibility.
- Easy maintenance.
- Expanded operating temperature range.
- Grease-free series.
- RoHS.

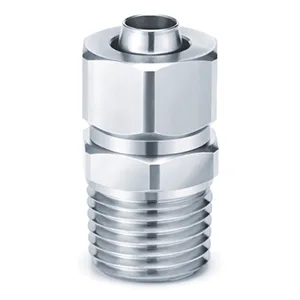

Series image. Appearance may vary by model and options.Fittings & tubing
KFG2H
Specialty Fitting, 316 Stainless Steel, Male Connector - KFG2H
Explore the features, model options and technical documentation for KFG2H. Contact Pnoneks to select the full part number for your application.
SMC ·Pneumatic Fittings
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting KFG2H
Selecting KFG2H: review the full part number and your system conditions when considering this Fittings & tubing record. Share Applicable Tube O.D. x I.D., Port Size, Sealant, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- KFG2H
- Product group
- Fittings & tubing
- Function
- Pneumatic Fittings
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Applicable Tube O.D. x I.D., Port Size, Sealant
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Applicable Tube O.D. x I.D. | 0425 (Ø4 x Ø2.5) · 0403 (Ø4 x Ø3) · 0604 (Ø6 x Ø4) · 0806 (Ø8 x Ø6) · 1075 (Ø10 x Ø7.5) · 1008 (Ø10 x Ø8) · 1209 (Ø12 x Ø9) · 1210 (Ø12 x Ø10) · 1613 (Ø16 x Ø13) |
| Port Size | 01 (R 1/8) · 02 (R 1/4) · 03 (R 3/8) · 04 (R 1/2) |
| Sealant | None · S (Sealant) |
