- Female Connector.
- Compact and light weight.
- Design flexibility.
- Grease-free series.
- RoHS.

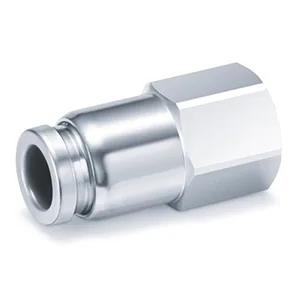

Series image. Appearance may vary by model and options.Fittings & tubing
KQG2F
One Touch Fitting, 316 Stainless Steel, Female Connector - KQG2F
Explore the features, model options and technical documentation for KQG2F. Contact Pnoneks to select the full part number for your application.
SMC ·Pneumatic Fittings
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting KQG2F
Selecting KQG2F: review the full part number and your system conditions when considering this Fittings & tubing record. Share Applicable Tube O.D., Port Size, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- KQG2F
- Product group
- Fittings & tubing
- Function
- Pneumatic Fittings
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Applicable Tube O.D., Port Size
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Applicable Tube O.D. | 23 (Ø3.2 mm) · 04 (Ø4 mm) · 06 (Ø6 mm) · 08 (Ø8 mm) · 10 (Ø10 mm) · 12 (Ø12 mm) · 16 (Ø16 mm) |
| Port Size | 01 (R1/8) · 02 (R1/4) · 03 (R3/8) · 04 (R1/2) |
