- Applicable Fluids: industrial water and air.
- Applicable Tubing O.D.: Ø 4 to Ø 12 mm.
- Temperatures between -20 to 60 ºC for air and between 0 and 40 ºC for water.
- 10 colour variations.

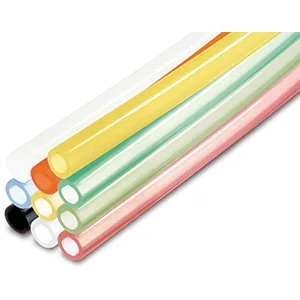

Series image. Appearance may vary by model and options.Fittings & tubing
HF2B-TU
Polyurethane Tubing, in compliance with the FDA and (EU) No. 10/2011 - HF2B-TU
Explore the features, model options and technical documentation for HF2B-TU. Contact Pnoneks to select the full part number for your application.
SMC ·Pneumatic Tubes
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting HF2B-TU
Selecting HF2B-TU: review the full part number and your system conditions when considering this Fittings & tubing record. Share Tubing Size (O.D. x I.D.), Colour, Roll Length, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- HF2B-TU
- Product group
- Fittings & tubing
- Function
- Pneumatic Tubes
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Tubing Size (O.D. x I.D.), Colour, Roll Length
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Tubing Size (O.D. x I.D.) | 0425 (O.D. Ø4, I.D. Ø2.5) · 0604 (O.D. Ø6 I.D. Ø4) · 0805 (O.D. Ø8 I.D. Ø5) · 1065 (O.D. Ø10, I.D. Ø6.5) · 1208 (O.D. Ø12, I.D. Ø8) |
| Colour | B (Black) · BU (Blue) · C (Clear) · G (Green) · R (Red) · W (White) · Y (Yellow) · YR (Orange) · G2 (Clear green) · Y2 (Clear yellow) |
| Roll Length | 20 m |
