- High purity fluoropolymer fitting
- Triple-seal construction
- Max. operating temperature: 200 °C
- Variety of size combinations available.

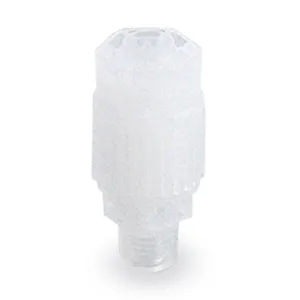

Series image. Appearance may vary by model and options.Fittings & tubing
LQ3H
Catalogue variant 2Specialty Fitting, High Purity, Threaded Connection, Connector Type - LQ3H
Explore the features, model options and technical documentation for LQ3H. Contact Pnoneks to select the full part number for your application.
SMC ·Pneumatic Fittings
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting LQ3H
Selecting LQ3H: review the full part number and your system conditions when considering this Fittings & tubing record. Share Fitting Type, Size Combination, Piping Type, Thread, Packaging, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- LQ3H
- Product group
- Fittings & tubing
- Function
- Pneumatic Fittings
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Fitting Type, Size Combination, Piping Type, Thread, Packaging
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Fitting Type | H (Straight) |
| Size Combination | 1A (Tubing: 1/8" x 0.086"; Thread: 1/8") · 2A (Tubing: 1/4" x 5/32"; Thread: 1/8") · 2B (Tubing: 1/4" x 5/32"; Thread: 1/4") · 3A (Tubing: 3/8" x 1/4"; Thread: 1/8") · 3B (Tubing: 3/8" x 1/4"; Thread: 1/4") · 3C (Tubing: 3/8" x 1/4"; Thread: 3/8") · 3D (Tubing: 3/8" x 1/4"; Thread: 1/2") · 4A (Tubing: 1/2" x 3/8"; Thread: 1/4") · 4B (Tubing: 1/2" x 3/8"; Thread: 3/8") · 4C (Tubing: 1/2" x 3/8"; Thread: 1/2") · 4D (Tubing: 1/2" x 3/8"; Thread: 3/4") · 5A (Tubing: 3/4" x 5/8"; Thread: 3/8") · 5B (Tubing: 3/4" x 5/8"; Thread: 1/2") · 5C (Tubing: 3/4" x 5/8"; Thread: 3/4") · 6A (Tubing: 1" x 7/8"; Thread: 1/2") · 6B (Tubing: 1" x 7/8"; Thread: 3/4") · 6C (Tubing: 1" x 7/8"; Thread: 1") · 7A (Tubing: 1 1/4" x 1.1"; Thread: 3/4") · 7B (Tubing: 1 1/4" x 1.1"; Thread: 1") · 7C (Tubing: 1 1/4" x 1.1"; Thread: 1 1/4") · 8C (Tubing: 1 1/2" x 1.33"; Thread: 1 1/2") · 11 (Tubing: 4 x 3; Thread: 1/8") · 12 (Tubing: 3 x 2; Thread: 1/8") · 21 (Tubing: 6 x 4; Thread: 1/8") · 22 (Tubing: 6 x 4; Thread: 1/4") · 31 (Tubing: 10 x 8; Thread: 1/8") · 32 (Tubing 8 x 6; Thread 1/8") · 33 (Tubing: 10 x 8; Thread: 1/4") · 34 (Tubing 8 x 6; Thread 1/4") · 35 (Tubing: 10 x 8; Thread: 3/8") · 36 (Tubing 8 x 6; Thread 3/8") · 38 (Tubing 8 x 6; Thread 1/2") · 41 (Tubing: 12 x 10; Thread: 1/4") · 42 (Tubing: 12 x 10; Thread: 3/8") · 43 (Tubing: 12 x 10; Thread: 1/2") · 44 (Tubing: 12 x 10; Thread 3/4") · 51 (Tubing: 19 x 16; Thread: 3/8") · 52 (Tubing: 19 x 16; Thread: 1/2") · 53 (Tubing: 19 x 16; Thread: 3/4") · 61 (Tubing: 25 x 22; Thread: 1/2") · 62 (Tubing: 25 x 22; Thread: 3/4") · 63 (Tubing: 25 x 22; Thread: 1") · 1A (Tubing: 1/8\" x 0.086\"; Thread: 1/8\") · 2A (Tubing: 1/4\" x 5/32\"; Thread: 1/8\") · 2B (Tubing: 1/4\" x 5/32\"; Thread: 1/4\") · 3A (Tubing: 3/8\" x 1/4\"; Thread: 1/8\") · 3B (Tubing: 3/8\" x 1/4\"; Thread: 1/4\") · 3C (Tubing: 3/8\" x 1/4\"; Thread: 3/8\") · 3D (Tubing: 3/8\" x 1/4\"; Thread: 1/2\") · 4A (Tubing: 1/2\" x 3/8\"; Thread: 1/4\") · 4B (Tubing: 1/2\" x 3/8\"; Thread: 3/8\") · 4C (Tubing: 1/2\" x 3/8\"; Thread: 1/2\") · 4D (Tubing: 1/2\" x 3/8\"; Thread: 3/4\") · 5A (Tubing: 3/4\" x 5/8\"; Thread: 3/8\") · 5B (Tubing: 3/4\" x 5/8\"; Thread: 1/2\") · 5C (Tubing: 3/4\" x 5/8\"; Thread: 3/4\") · 6A (Tubing: 1\" x 7/8\"; Thread: 1/2\") · 6B (Tubing: 1\" x 7/8\"; Thread: 3/4\") · 6C (Tubing: 1\" x 7/8\"; Thread: 1\") · 7A (Tubing: 1 1/4\" x 1.1\"; Thread: 3/4\") · 7B (Tubing: 1 1/4\" x 1.1\"; Thread: 1\") · 7C (Tubing: 1 1/4\" x 1.1\"; Thread: 1 1/4\") · 8C (Tubing: 1 1/2\" x 1.33\"; Thread: 1 1/2\") · 11 (Tubing: 4 x 3; Thread: 1/8\") · 12 (Tubing: 3 x 2; Thread: 1/8\") · 21 (Tubing: 6 x 4; Thread: 1/8\") · 22 (Tubing: 6 x 4; Thread: 1/4\") · 31 (Tubing: 10 x 8; Thread: 1/8\") · 32 (Tubing 8 x 6; Thread 1/8\") · 33 (Tubing: 10 x 8; Thread: 1/4\") · 34 (Tubing 8 x 6; Thread 1/4\") · 35 (Tubing: 10 x 8; Thread: 3/8\") · 36 (Tubing 8 x 6; Thread 3/8\") · 38 (Tubing 8 x 6; Thread 1/2\") · 41 (Tubing: 12 x 10; Thread: 1/4\") · 42 (Tubing: 12 x 10; Thread: 3/8\") · 43 (Tubing: 12 x 10; Thread: 1/2\") · 44 (Tubing: 12 x 10; Thread 3/4\") · 51 (Tubing: 19 x 16; Thread: 3/8\") · 52 (Tubing: 19 x 16; Thread: 1/2\") · 53 (Tubing: 19 x 16; Thread: 3/4\") · 61 (Tubing: 25 x 22; Thread: 1/2\") · 62 (Tubing: 25 x 22; Thread: 3/4\") · 63 (Tubing: 25 x 22; Thread: 1\") |
| Piping Type | M (Male) · F (Female) |
| Thread | R, Rc · N (NPT) |
| Packaging | Clean Packaging · 1 (Standard Packaging Equiv. to Class M5.5) · 2 (Packaging Equivalent to Class M3.5 w/PVDF Nut) · 3 (Packaging Equivalent to Class M5.5 w/PVDF Nut) |
