- Stainless Steel 303
- Port Size: M5, 10-32 UNF, 1/8, 1/4, 3/8, 1/2
- Applicable Tubing O.D.: Ø 3.2 to Ø 12 mm and Ø 1/8" to Ø 1/2"
- Operating Pressure Range: 0.1 to 1 MPa.

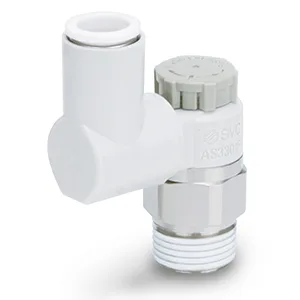

Series image. Appearance may vary by model and options.Fittings & tubing
AS*3*1FG-A
Speed Controllers, Stainless Steel, With Push-lock, Universal - AS*3*1FG-A
Explore the features, model options and technical documentation for AS*3*1FG-A. Contact Pnoneks to select the full part number for your application.
SMC ·Flow Control Valves and Equipment
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting AS*3*1FG-A
Selecting AS*3*1FG-A: review the full part number and your system conditions when considering this Fittings & tubing record. Share Clean Series, Body Size, Type, Control Type, Thread, Port Size, Applicable Tubing O.D., Seal, Made to Order, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- AS*3*1FG-A
- Product group
- Fittings & tubing
- Function
- Flow Control Valves and Equipment
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Clean Series, Body Size, Type, Control Type, Thread, Port Size, Applicable Tubing O.D., Seal, Made to Order
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Clean Series | None · 10- (Clean Series) |
| Body Size | 1 (M5x0.8, 10-32UNF) · 2 (1/8, 1/4) · 3 (3/8) · 4 (1/2) |
| Type | 3 (Universal) |
| Control Type | 0 (Meter-out) · 1 (Meter-in) |
| Thread | R (or Metric) · N (NPT) · G (G) |
| Port Size | M5 (M5 x 0.8) · U10/32 (10-32UNF) · 01 (1/8) · 02 (1/4) · 03 (3/8) · 04 (1/2) |
| Applicable Tubing O.D. | 23 (Ø3.2 mm) · 01 (ø1/8") · 03 (ø5/32") · 04 (Ø4 mm) · 06 (Ø6 mm) · 07 (ø1/4") · 08 (Ø8 mm) · 09 (ø5/16") · 10 (Ø10 mm) · 11 (ø3/8") · 12 (Ø12 mm) · 13 (ø1/2") · 01 (ø1/8\") · 03 (ø5/32\") · 07 (ø1/4\") · 09 (ø5/16\") · 11 (ø3/8\") · 13 (ø1/2\") |
| Seal | w/o Sealant · S (w/Sealant) |
| Made to Order | None · X12 (Lubricant: Vaseline) · X214 [Restrictor (Without Check Valve)] · X21 [Grease-free (Seal: Fluorine-coated) + Restrictor (Without Check Valve)] |
