- Female elbow.
- Applicable Tubing O.D.: ø4, ø6, ø8, ø10, ø12, ø1/8, ø5/32, ø1/4, ø3/8, ø1/2.
- Applicable Port Size: M5, M6, 1/8, 1/4, 3/8, 1/2.

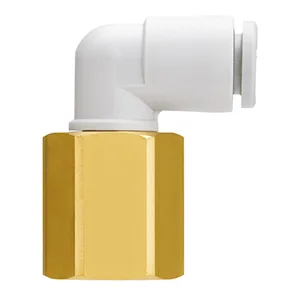

Series image. Appearance may vary by model and options.Fittings & tubing
KQ2LF
One Touch Fitting, General Purpose, Tube-Female Thread Connection, Female Elbow - KQ2LF
Explore the features, model options and technical documentation for KQ2LF. Contact Pnoneks to select the full part number for your application.
SMC ·Pneumatic Fittings
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting KQ2LF
Selecting KQ2LF: review the full part number and your system conditions when considering this Fittings & tubing record. Share Applicable Tube O.D., Port Size, Thread Material / Surface Treatment, Option, Release Button, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- KQ2LF
- Product group
- Fittings & tubing
- Function
- Pneumatic Fittings
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Applicable Tube O.D., Port Size, Thread Material / Surface Treatment, Option, Release Button
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Applicable Tube O.D. | ø 4 · ø 6 · ø 8 · ø 10 · ø 12 · ø 1/8 · ø 5/32 · ø 1/4 · ø 3/8 · ø 1/2 |
| Port Size | M5 x 0.8 · M6 x 1.0 · 1/8 · 1/4 · 3/8 · 1/2 · NPT 1/8 · NPT 1/4 · NPT 3/8 · NPT 1/2 |
| Thread Material / Surface Treatment | A (Brass) · N (Brass + Electroless Nickel Plated) |
| Option | None · Q (Interchangeable with Old KQ Series) |
| Release Button | Round Type · 1 (Oval Type) |
