- Bulkhead union.
- Applicable Tubing O.D.: ø3.2, ø4, ø6, ø8, ø10, ø12, ø16, ø1/8, ø5/32, ø3/16, ø1/4, ø5/16, ø3/8, ø1/2.
- Same diameter tubing.

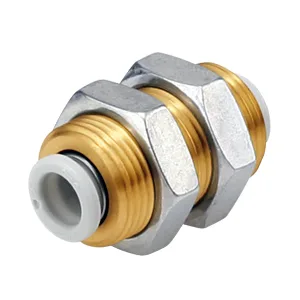

Series image. Appearance may vary by model and options.Fittings & tubing
KQ2E*-00
One Touch Fitting, General Purpose, Tube-Tube Connection, Bulkhead Union - KQ2E*-00
Explore the features, model options and technical documentation for KQ2E*-00. Contact Pnoneks to select the full part number for your application.
SMC ·Pneumatic Fittings
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting KQ2E*-00
Selecting KQ2E*-00: review the full part number and your system conditions when considering this Fittings & tubing record. Share Applicable Tube O.D., Connection Thread, Thread Material / Surface Treatment, Option, Release Button, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- KQ2E*-00
- Product group
- Fittings & tubing
- Function
- Pneumatic Fittings
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Applicable Tube O.D., Connection Thread, Thread Material / Surface Treatment, Option, Release Button
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Applicable Tube O.D. | ø 2 · ø 3.2 · ø 4 · ø 6 · ø 8 · ø 10 · ø 12 · ø 16 · ø 1/8 · ø 5/32 · ø 3/16 · ø 1/4 · ø 5/16 · ø 3/8 · ø 1/2 |
| Connection Thread | Inch Size (NPT, UNF) or Metric Size (M, R, Rc) · M [Inch Size (M, R, Rc)] |
| Thread Material / Surface Treatment | A (Brass) · N (Brass + Electroless Nickel Plated) · G (Stainless Steel 303) |
| Option | None · J (Interchangeable with KJE Series) |
| Release Button | Round Type · 1 (Oval Type) |
