AS*1FG

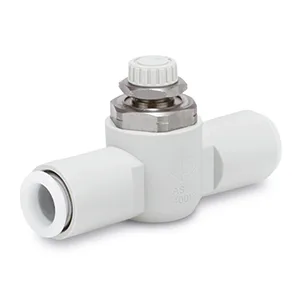

Speed Controllers, Stainless Steel, Simple Handle, In-line - AS*1FG

Explore the features, model options and technical documentation for AS*1FG. Contact Pnoneks to select the full part number for your application.

SMC ·Flow Control Valves and Equipment

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting AS*1FG

Selecting AS*1FG: review the full part number and your system conditions when considering this Fittings & tubing record. Share Body Size, Applicable Tubing O.D., Made to Order, Lock Nut, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: AS*1FG
Product group: Fittings & tubing
Function: Flow Control Valves and Equipment
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Body Size, Applicable Tubing O.D., Made to Order, Lock Nut

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Stainless Steel 303
Applicable Tubing O.D.: Ø 3.2 to Ø 12 mm and Ø 1/8" to Ø 1/2"
Operating Pressure Range: 0.1 to 1 MPa.

Selection fields published in the source
Parameter	Options / values
Body Size	100 (M5 Basis) · 200 (1/8 Basis) · 205 (1/4 Basis) · 300 (3/8 Basis) · 400 (1/2 Basis)
Applicable Tubing O.D.	01 (1/8") · 03 (5/32") · Ø4 mm · 05 (3/16") · Ø6 mm · 07 (1/4") · Ø8 mm · 09 (5/16") · Ø10 mm · 11 (3/8") · Ø12 · 13 (1/2") · 23 (Ø3.2 mm) · 01 (1/8\") · 03 (5/32\") · 05 (3/16\") · 07 (1/4\") · 09 (5/16\") · 11 (3/8\") · 13 (1/2\")
Made to Order	None · X12 (Lubricant: Vaseline) · X21 [Grease-free (Seal: Fluorine-coated) + Restrictor (Without Check Valve)] · X214 [Restrictor (Without Check Valve)]
Lock Nut	Standard (Hexagon) · J (Round)
