- Membrane air dryer series
- Energy saving
- Single unit style
- 5 sizes available
- Port sizes: 1/4" to 1/2"

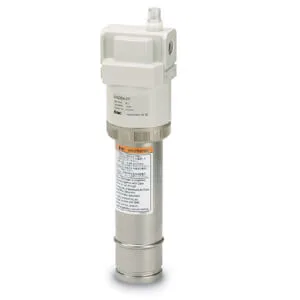

Series image. Appearance may vary by model and options.Air preparation
IDG-A
IDG-A, Membrane Air Dryer
Explore the features, model options and technical documentation for IDG-A. Contact Pnoneks to select the full part number for your application.
SMC ·Compressed Air Dryers
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting IDG-A
Selecting IDG-A: review the full part number and your system conditions when considering this Air preparation record. Share Size, Standard Dew Point, Thread, Port Size, Accessory, Option, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- IDG-A
- Product group
- Air preparation
- Function
- Compressed Air Dryers
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Size, Standard Dew Point, Thread, Port Size, Accessory, Option
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Size | 30 [300 l/min (: -20°C/-15°C) - 75 l/min (: -40°C)] · 50 [500 l/min (: -20°C/-15°C) - 110 l/min (: -40°C)] · 60 [170 l/min (: -40°C) - 50 l/min (: -60°C)] · 75 [240 l/min (: -40°C) - 100 l/min (: -60°C)] · 100 [300 l/min (: -40°C) - 150 l/min (: -60°C)] |
| Standard Dew Point | -20°C · H (-15°C) · L (-40°C) · S (-60°C) |
| Thread | Rc(PT) · F (G(PF)) · N (NPT) |
| Port Size | 02 (1/4) · 03 (3/8) · 04 (1/2) |
| Accessory | None (Standard) · B (Bracket) |
| Option | Standard · P (Fitting for Purge Air Exhaust) · R (Flow Direction: Right to Left) · PR (Fitting for Purge Air Exhaust/Flow Right to Left) |
