- Port size: 1/4, 3/8, 1/2
- Operating pressure range (MPa): 0.15 to 1.0.

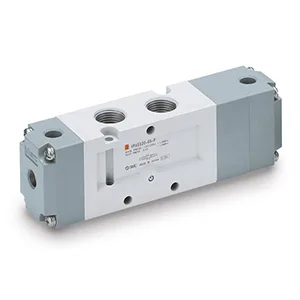

Series image. Appearance may vary by model and options.Directional control valves
VFA5000
VFA5000, 5 Port Air Operated Valve, All Types
Explore the features, model options and technical documentation for VFA5000. Contact Pnoneks to select the full part number for your application.
SMC ·Air Operated Valves & Manifolds
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting VFA5000
Selecting VFA5000: review the full part number and your system conditions when considering this Directional control valves record. Share Configuration, Body Type, Port Size, Thread Type, Port Location, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- VFA5000
- Product group
- Directional control valves
- Function
- Air Operated Valves & Manifolds
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Configuration, Body Type, Port Size, Thread Type, Port Location
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Configuration | 1 (2 Position Single) · 2 (2 Position Double Solenoid) · 3 (3 Position Closed Centre) · 4 (3 Position Exhaust Centre) · 5 (3 Position Pressure Centre) |
| Body Type | 20 (Body Ported) · 44 (Base Mounted) |
| Port Size | w/o Sub-plate (Pilot Port: Rc) · 00 [w/o Sub-plate (Pilot Port: G, NPT, NPTF)] · 02 (1/4) · 03 (3/8) · 04 (1/2) |
| Thread Type | Rc · F (G) · N (NPT) · T (NPTF) |
| Port Location | Upward · P (Lateral) |
