- CS2 mounting brackets.
- Type: flange, foot, single & double clevis.
- Bore sizes: ø125 to ø250.

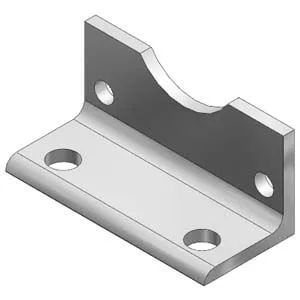

Series image. Appearance may vary by model and options.Pneumatic actuators
CS2
CS2, Accessory, Mounting Brackets
Explore the features, model options and technical documentation for CS2. Contact Pnoneks to select the full part number for your application.
SMC ·Actuator Accessories
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting CS2
Selecting CS2: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Mounting, Applicable Bore Size, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- CS2
- Product group
- Pneumatic actuators
- Function
- Actuator Accessories
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Mounting, Applicable Bore Size
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Mounting | C (Single Clevis) · D (Double Clevis) · F (Flange) · L (Foot) |
| Applicable Bore Size | 12 (125 mm) · 14 (140 mm) · 16 (160 mm) · 18 (180 mm) · 20 (200 mm) · 25 (250 mm) · 32 (320mm) |
