M(D)U

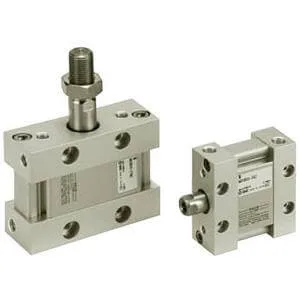

M(D)U Plate Cylinder, Single Acting w/Auto Switch Mounting Groove

Explore the features, model options and technical documentation for M(D)U. Contact Pnoneks to select the full part number for your application.

SMC ·Linear Actuators and Linear Acting Cylinders

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting M(D)U

Selecting M(D)U: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Magnet, Mounting, Size, Port Thread, Stroke, Action, Rod End, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: M(D)U
Product group: Pneumatic actuators
Function: Linear Actuators and Linear Acting Cylinders
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Magnet, Mounting, Size, Port Thread, Stroke, Action, Rod End, Auto Switch, Lead Wire or Pre-wired Connector, Number

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Plate Cylinder, Single Acting, Single Rod.
Reduced labour when mounting the switch.
Auto-switch doesn´t protrude.
It´s possible to mount the autoswitches in four directions.
A maximum 62% width reduction.

Selection fields published in the source
Parameter	Options / values
Magnet	None · D (Built-in)
Mounting	B (Basic) · L (Foot) · F (Rod Flange) · G (Head Flange) · C (Single Clevis) · D (Double Clevis)
Size	25 (Equiv. Ø25 Piston Area) · 32 (Equiv. Ø32 Piston Area) · 40 (Equiv. Ø40 Piston Area) · 50 (Equiv. Ø50 Piston Area) · 63 (Equiv. Ø63 Piston Area)
Port Thread	M thread: Ø25, Rc: Ø32 to Ø63 · TN (NPT) · TF (G)
Stroke	5 mm · 10 mm · 15 mm · 20 mm
Action	S (Single Acting, Spring Return) · T (Single Acting, Spring Extend)
Rod End	Female Thread · M (Male Thread)
Auto Switch	None · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal · M9BA--Solid State Switch, Water Resist., 2 Wire, Horizontal · M9BAV--Solid State Switch, Water Resist., 2 Wire, Vertical · M9BV--Solid State Switch, Gen. Purpose, 2 Wire, Vertical · M9BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · M9BWV--Solid State Switch, 2-colour Indication, 2 Wire, Vertical · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal · M9NA--Solid State Switch, Water Resist., 3 Wire NPN, Horizontal · M9NAV--Solid State Switch, Water Resist, 3 Wire NPN, Perpendicular · M9NV--Solid State Switch, Gen. Purpose, 3 Wire NPN, Vertical · M9NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · M9NWV--Solid State Switch, 2-colour Indication, 3 Wire NPN, Vertical · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal · M9PA--Solid State Switch, Water Resist., 3 Wire PNP, Horizontal · M9PAV--Solid State Switch, Water Resist., 3 Wire PNP, Vertical · M9PV--Solid State Switch, Gen. Purpose, 3 Wire PNP, Vertical · M9PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · M9PWV--Solid State Switch, 2-colour Indication, 3 Wire PNP, Vertical · A90--Reed Switch, AC/DC Volt. <100, Horizontal · A90V--Reed Switch, AC/DC Volt. <100, Vertical · A93--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal · A93V--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Vertical · A96--Reed Switch, DC Volt. 4-8, LED, Horizontal · A96V--Reed Switch, DC Volt. 4-8, LED, Vertical
Lead Wire or Pre-wired Connector	0.5 m (Or None in the Case of No Switch) · M (1m) · L (3 m) · Z (5 m) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector)
Number	2 pcs. (Or None in Case of No Switch) · S (1 pc.)
