REAL

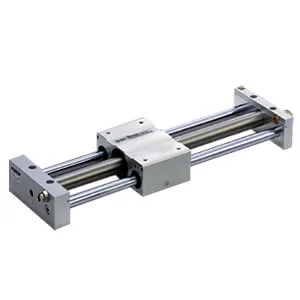

REAL, Sine Rodless Cylinder, Slider Type, Ball Bushing

Explore the features, model options and technical documentation for REAL. Contact Pnoneks to select the full part number for your application.

SMC ·Specialty Actuators

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting REAL

Selecting REAL: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Bore Size, Stroke, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: REAL
Product group: Pneumatic actuators
Function: Specialty Actuators
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Bore Size, Stroke, Auto Switch, Lead Wire or Pre-wired Connector, Number

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Slider Type, Ball Bushing
Bore sizes: 10, 15, 20, 25, 32 & 40(mm)
Strokes from 150mm through 1500mm
Auto-switch capable

Selection fields published in the source
Parameter	Options / values
Bore Size	10 mm · 15 mm · 20 mm · 25 mm · 32 mm · 40 mm
Stroke	[150-199] · [200-500] · [501-750] · [751-1000] · [1001-1500]
Auto Switch	No Switch · A72--Reed Switch, AC Volt. <200, LED, Vertical · A73--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Vertical · A80--Reed Switch, AC/DC Volt. <100, Vertical · A73C--Reed Switch, DC Volt. >5<24, LED, Connector, Vertical · A80C--Reed Switch, AC/DC Volt. >5<24, Connector, Vertical · F7NV--Solid State Switch, Gen. Purpose, 3 Wire NPN, Lead Wire, Vertical · F7PV--Solid State Switch, Gen. Purpose, 3 Wire PNP, Lead Wire, Vertical · F7BV--Solid State Switch, Gen. Purpose, 2 Wire, Lead Wire, Vertical · J79C--Solid State Switch, Gen. Purpose, 2 Wire, Connector, Vertical · F7NWV--Solid State Switch, 2-colour Indication, 3 Wire NPN, Lead Wire, Vertical · F7BWV--Solid State Switch, 2-colour Indication, 3 Wire PNP, Lead Wire, Vertical · A76H--Reed Switch, DC Volt. 4-8, LED, Horizontal · A72H--Reed Switch, AC Volt. <200, LED, Horizontal · A80H--Reed Switch, AC/DC Volt. <100, Horizontal · A73H--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal · F79--Solid State Switch, Gen. Purpose, 3 Wire NPN, Lead Wire, Horizontal · F7P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Lead Wire, Horizontal · J79--Solid State Switch, Gen. Purpose, 2 Wire, Lead Wire, Horizontal · F79W--Solid State Switch, 2-colour Indication, 3 Wire NPN, Lead Wire, Horizontal · F7PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Lead Wire, Horizontal · J79W--Solid State Switch, 2-colour Indication, 2 Wire, Lead Wire, Horizontal · F7BA--Solid State Switch, Water Resist., 2 Wire, Lead Wire, Horizontal · F7NT--Solid State Switch, With Timer, 3 Wire NPN, Lead Wire, Horizontal · F79F--Solid State Switch, Diagnostic, 4 Wire NPN, Lead Wire, Horizontal · F7LF--Solid State Switch, Diagnostic, 4 Wire NPN, Lead Wire, Horizontal · F7BAV--Solid State Switch, Water Resist., 2 Wire, Lead Wire, Vertical
Lead Wire or Pre-wired Connector	0.5 m (Or None in the Case of No Switch) · L (3 m) · Z (5 m) · N (None) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector)
Number	2 pcs. (Or None in Case of No Switch) · S (1 pc.)
