- Applicable series: CQS
- Type: flange, foot and double clevis
- Applicable bore sizes (mm): 12 to 25.

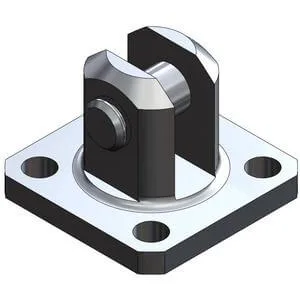

Series image. Appearance may vary by model and options.Pneumatic actuators
CQS
Mounting Brackets for CQS
Explore the features, model options and technical documentation for CQS. Contact Pnoneks to select the full part number for your application.
SMC ·Actuator Accessories
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting CQS
Selecting CQS: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Type, Mounting, Applicable Bore Size, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- CQS
- Product group
- Pneumatic actuators
- Function
- Actuator Accessories
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Type, Mounting, Applicable Bore Size
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Type | Standard, Anti-lateral, Microspeed · K (Non-Rotating) |
| Mounting | D (Double Clevis) · F (Flange) · L (Foot, Requires 2 Per Cylinder) · LC (Compact Foot, Requires 2 Per Cylinder) |
| Applicable Bore Size | 012 (12mm) · 016 (16 mm) · 020 (20mm) · 025 (25mm) |
