- High level of stopping accuracy Three-styles of locking mechanism.
- Lockable in both directions.
- Maximum piston speed: 500mm/s.
- Air cushion provided as standard equipment.
- Possible to detect the operating position.

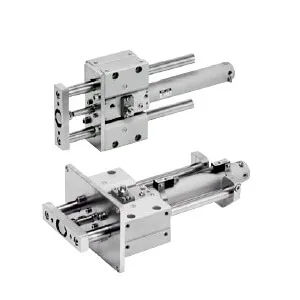

Series image. Appearance may vary by model and options.Pneumatic actuators
MLGC
MLGC, Fine Lock Cylinder with Guide
Explore the features, model options and technical documentation for MLGC. Contact Pnoneks to select the full part number for your application.
SMC ·Guided Pneumatic Cylinders and Actuators
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting MLGC
Selecting MLGC: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Bearing, Mounting, Bore Size, Thread Type, Stroke, Back Rear, Lock Style, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- MLGC
- Product group
- Pneumatic actuators
- Function
- Guided Pneumatic Cylinders and Actuators
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Bearing, Mounting, Bore Size, Thread Type, Stroke, Back Rear, Lock Style, Auto Switch, Lead Wire or Pre-wired Connector, Number
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Bearing | M (Slide Bearing) · L (Ball Bushing Bearing) |
| Mounting | B (Basic) · F (Front Flange) |
| Bore Size | 20 mm · 25 mm · 32 mm · 40 mm |
| Thread Type | Rc (Or M5 x 0.8 for 20, 25 Bores) · TN (NPT) |
| Stroke | [75-400] · [401-500] · [501-600] · [601-800] |
| Back Rear | Without Rear Plate · R (With Rear Plate) |
| Lock Style | E (Spring Lock (Exhaust Lock)) · P (Air Pressure (Pressure Lock)) · D (Spring - Pneumatic Pressure) |
| Auto Switch | No Switch · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal · M9BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal · M9NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal · M9PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · F9G--Solid State Switch, 3 Wire NPN, Horizontal · F9H--Solid State Switch, 3 Wire PNP, Vertical · A90--Reed Switch, AC/DC Volt. <100, Horizontal · A93--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal · A96--Reed Switch, DC Volt. 4-8, LED, Horizontal · B54--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, Horizontal · B59W--Reed Switch, 2-colour Indication, DC Volt. >5<24, LED, Horizontal · B64--Reed Switch, DC Volt. >5<24, AC Volt. <200, Horizontal · C73C--Reed Switch, DC Volt. >5<24, LED, Connector · C80C--Reed Switch, AC/DC Volt. >5<24, Connector · H7BA--Solid State Switch, Water Resist., 2 Wire, Lead Wire · H7C--Solid State Switch, Gen. Purpose, 2 Wire, Connector · H7NF--Solid State Switch, Diagnostic, 4 Wire NPN, Lead Wire |
| Lead Wire or Pre-wired Connector | 0.5 m (Or None in the Case of No Switch) · M (1m) · L (3 m Lead Wire) · Z (5 m Lead Wire) · N (None) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector) |
| Number | 2 pcs. (Or None in Case of No Switch) · S (1 pc.) |
