MGCL

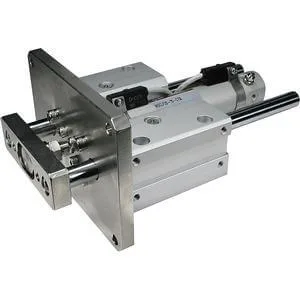

MGCL, Compact Guide Cylinder, Ball Bushing Bearing

Explore the features, model options and technical documentation for MGCL. Contact Pnoneks to select the full part number for your application.

SMC ·Guided Pneumatic Cylinders and Actuators

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting MGCL

Selecting MGCL: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Copper Free, Air Hydro, Mounting, Bore Size, Thread Type, Stroke, Option, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: MGCL
Product group: Pneumatic actuators
Function: Guided Pneumatic Cylinders and Actuators
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Copper Free, Air Hydro, Mounting, Bore Size, Thread Type, Stroke, Option, Auto Switch, Lead Wire or Pre-wired Connector, Number

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Ball bushing bearings
Bore sizes from 20mm to 50mm
Long strokes available
Lightweight
Air cushion standard

Selection fields published in the source
Parameter	Options / values
Copper Free	None · 20- (Copper Free)
Air Hydro	None · H (Air Hydro)
Mounting	B (Basic) · F (Front Flange)
Bore Size	20 mm · 25 mm · 32 mm · 40 mm · 50 mm
Thread Type	Rc (Or M5 x 0.8 for 20, 25 Bores) · TN (NPT) · TF (G)
Stroke	[75-400-1] · [401-500-1] · [501-600-1] · [601-800-1] · [801-1000-1]
Option	w/o Rear Plate · R (Rear Plate)
Auto Switch	No Switch · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal · M9BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal · M9NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal · M9PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · F9G--Solid State Switch, 3 Wire NPN, Horizontal · F9H--Solid State Switch, 3 Wire PNP, Vertical · A90--Reed Switch, AC/DC Volt. <100, Horizontal · A93--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal · A96--Reed Switch, DC Volt. 4-8, LED, Horizontal · B54--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, Horizontal, 0.5 m · B59W--Reed Switch, 2-colour Indication, DC Volt. >5<24, LED, Horizontal, 0.5 m · B64--Reed Switch, DC Volt. >5<24, AC Volt. <200, Horizontal, 0.5 m · C73C--Reed Switch, DC Volt. >5<24, LED, Connector, 0.5 m · C80C--Reed Switch, AC/DC Volt. >5<24, Connector, 0.5 m · H7C--Solid State Switch, Gen. Purpose, 2 Wire, Connector, 0.5 m · H7NF--Solid State Switch, Diagnostic, 4 Wire NPN, Lead Wire, 0.5 m · H7BA--Solid State Switch, Water Resist., 2 Wire, Lead Wire
Lead Wire or Pre-wired Connector	0.5 m (Or None in the Case of No Switch) · M (1m) · N (No Lead Wire) · L (3 m) · Z (5 m) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector)
Number	2 pcs. (Or None in Case of No Switch) · S (1 pc.)
