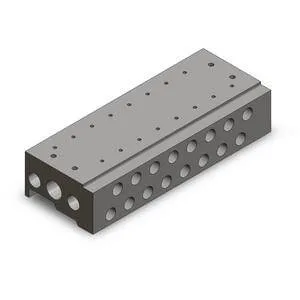

VV5QZ*5-SA, 1000/2000/3000 Series, Base Mounted Manifold, EX510 Serial Wiring

Explore the features, model options and technical documentation for VV5QZ*5-SA. Contact Pnoneks to select the full part number for your application.

SMC ·Pilot Operated 4/5 Port Solenoid Valves

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting VV5QZ*5-SA

Selecting VV5QZ*5-SA: review the full part number and your system conditions when considering this Directional control valves record. Share Series, SI Unit COM, Stations, A, B Port Size, Thread, Option, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: VV5QZ*5-SA
Product group: Directional control valves
Function: Pilot Operated 4/5 Port Solenoid Valves
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Series, SI Unit COM, Stations, A, B Port Size, Thread, Option

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

EX510 Serial Wiring for VQZ**5-SA valve
DIN rail mounting for ease of installation
Valves seperate from manifold for ease of maintenance
Maximum 16 stations available as standard

Selection fields published in the source
Parameter	Options / values
Series	1 (VQZ1000) · 2 (VQZ2000) · 3 (VQZ3000)
SI Unit COM	+COM · N (-COM)
Stations	2 Stations · 3 Stations · 4 Stations · 5 Stations · 6 Stations · 7 Stations · 8 Stations · 9 Stations · 10 Stations · 11 Stations · 12 Stations · 13 Stations · 14 Stations · 15 Stations · 16 Stations
A, B Port Size	M5 Thread · 01 (Rc1/8) · 02 (Rc1/4) · C3 (ø3.2 One-touch Fitting) · C4 (ø4 One-touch Fitting) · C6 (ø6 One-touch Fitting) · C8 (ø8 One-touch Fitting) · C10 (ø10 One-touch Fitting) · N1 (1/8" One-touch Fitting) · N3 (5/32" One-touch Fitting) · N7 (1/4" One-touch Fitting) · N9 (5/16" One-touch Fitting) · N11 (3/8" One-touch Fitting) · N1 (1/8\" One-touch Fitting) · N3 (5/32\" One-touch Fitting) · N7 (1/4\" One-touch Fitting) · N9 (5/16\" One-touch Fitting) · N11 (3/8\" One-touch Fitting)
Thread	Rc · N (NPT) · T (NPTF) · F (G)
Option	None · D (DIN Rail Mounting) · D0 (DIN Rail Mounting w/o DIN Rail) · K (Special wiring specifications) · N (Name Plate) · R (External Pilot) · NR (Name Plate, External Pilot) · KR (Special Wiring, External Pilot) · KN (Special wiring and name plate) · KNR (Special Wiring, Name Plate, External Pilot) · DK (DIN Rail Mounting and Special Wiring) · DN (DIN rail mounting with name plate) · DR (DIN Rail Mount w/External Pilot) · DNR (DIN Rail Mount, Name Plate, External Pilot) · DKN (DIN Rail Mount, Special Wiring, Name Plate) · DKR (DIN Rail Mount, Special Wiring, External Pilot) · DKNR (DIN Rail Mount, Special Wiring, Name Plate, External Pilot) · D0K (DIN Rail Mounting w/o DIN Rail and Special Wiring) · D0N (DIN Rail Mounting w/o DIN Rail, w/Name Plate) · D0R (DIN Rail Mounting w/o DIN Rail, w/External Pilot) · D0NR (DIN Rail Mounting w/o DIN Rail, w/Name Plate and External Pilot) · D0KN (DIN Rail Mounting w/o DIN Rail, Special Wiring, w/Name Plate) · D0KR (DIN Rail Mounting w/o DIN Rail, Special Wiring, External Pilot) · D0KNR (DIN Rail Mounting w/o DIN Rail, Special Wiring, w/Name Plate and External Pilot)
