- Fluid: air/inert gas
- Operating pressure range: 0.1 - 0.7MPa (high pressure type 1.0MPa)
- Effective area mm 2 (Cv): metal seal 2.2 (0.12) - 16.2 (0.9); rubber seal 3.6 (0.2) - 21.6 (1.2)
- Coil rated voltage: 12, 24VDC; 100, 110, 200, 220VAC
- Response time (ms) standard 1W, high pressure 1.5W: metal seal 25 or less; rubber seal 30 or less
- Ambient & fluid temperature: -10 to 50° C

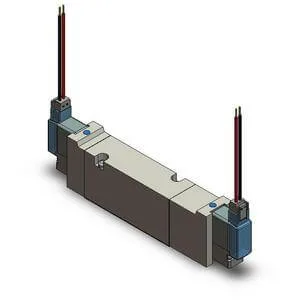

Series image. Appearance may vary by model and options.Directional control valves
VQZ**5*
VQZ**5*, 1000/2000/3000 Series, 5 Port Solenoid Valve, Base Mounted
Explore the features, model options and technical documentation for VQZ**5*. Contact Pnoneks to select the full part number for your application.
SMC ·Pilot Operated 4/5 Port Solenoid Valves
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting VQZ**5*
Selecting VQZ**5*: review the full part number and your system conditions when considering this Directional control valves record. Share Series, Composite Symbol, Seal Type, Function, Coil Voltage, Lead Wire, Manual Override, IP65-Compliant, Port Size, Q, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- VQZ**5*
- Product group
- Directional control valves
- Function
- Pilot Operated 4/5 Port Solenoid Valves
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Series, Composite Symbol, Seal Type, Function, Coil Voltage, Lead Wire, Manual Override, IP65-Compliant, Port Size, Q
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Series | 1 (VQZ1000) · 2 (VQZ2000) · 3 (VQZ3000) |
| Composite Symbol | 1 (2 Position Single) · 2 (2 Position Double Solenoid) · 3 (3 Position Closed Centre) · 4 (3 Position Exhaust Centre) · 5 (3 Position Pressure Centre) |
| Seal Type | 0 (Metal Seal) · 1 (Rubber Seal) |
| Function | Standard (1 W DC, AC) · B (High-speed Response, 0.9 W - DC Only) · BR (High Speed Response 0.9 W - DC Only, External Pilot) · K (High-pressure, 0.9 W - DC Only) · KR (High-pressure 0.9 W - DC Only, External Pilot) · R (External Pilot) |
| Coil Voltage | 1 (100 VAC 50/60 Hz) · 2 (200 VAC 50/60 Hz) · 3 (110 VAC 50/60 Hz) · 4 (220 VAC, 50/60 Hz) · 5 (24 VDC) · 6 (12 VDC) |
| Lead Wire | G (Grommet Lead Wire 0.3 m) · L (L Plug Connector w/Lead Wire 300 mm) · LO (L Plug w/o Connector) · M (M Plug Connector w/Lead Wire 0.3 m) · MO (M Plug w/o Connector) · Y (DIN Connector w/o Light, w/o Surge Suppressor) · YO (DIN Terminal w/o Connector, w/o Light, w/o Surge Voltage Suppressor) · YOS (DIN Terminal w/o Connector, w/o Light, w/Surge Voltage Suppressor) · YZ (DIN Terminal w/Light and Surge Voltage Suppressor) · YS (DIN Terminal, w/o Light, w/Surge Voltage Suppressor) |
| Manual Override | Non-locking Push Type · B (Locking Slotted Type) |
| IP65-Compliant | No · W (Compliant) |
| Port Size | w/o Sub-plate · 01 (Base Mounted w/Sub-plate Rc1/8) · 01T (Base Mounted w/Sub-plate NPTF1/8) · 01N (Base Mounted w/Sub-plate NPT1/8) · 01F (Base Mounted w/Sub-plate G1/8) · 02 (Base Mounted w/Sub-plate Rc1/4) · 02T (Base Mounted w/Sub-plate NPTF1/4) · 02N (Base Mounted w/Sub-plate NPT1/4) · 02F (Base Mounted w/Sub-plate G1/4) · 03 (Base Mounted w/Sub-plate Rc3/8) · 03T (Base Mounted w/Sub-plate NPTF3/8) · 03N (Base Mounted w/Sub-plate NPT3/8) · 03F (Base Mounted w/Sub-plate G3/8) |
| Q | No CE Mark · Q (CE-Marked) |
