- General purpose pressure gauge w/limit indicator
- Back side or vertical side thread
- Pressure range: 0 to 1.5MPa (0 to 225psi)
- Indication precision: ±3% F.S. (full span)

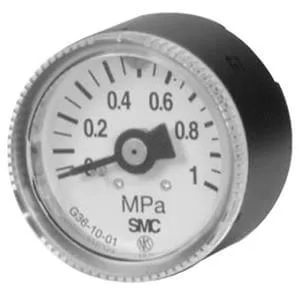

Series image. Appearance may vary by model and options.Air preparation
G(A)36
G(A)36, Pressure Gauge for General Purpose (O.D. 37)
Explore the features, model options and technical documentation for G(A)36. Contact Pnoneks to select the full part number for your application.
SMC ·Pressure Gauges
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting G(A)36
Selecting G(A)36: review the full part number and your system conditions when considering this Air preparation record. Share Pressure Gauge, Display Pressure, Connection Thread, Option, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- G(A)36
- Product group
- Air preparation
- Function
- Pressure Gauges
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Pressure Gauge, Display Pressure, Connection Thread, Option
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Pressure Gauge | G36 (ø37.5 Outside Diameter, Back Side Thread) · GA36 (ø37.5 Outside Diameter, Vertical Side Thread) |
| Display Pressure | 2 (0.2MPa) · 4 (0.4MPa) · 7 (0.7MPa) · 10 (1.0MPa) · 15 (1.5MPa) |
| Connection Thread | 01 (R 1/8) · 01M (R 1/8, M5 Female) |
| Option | None · X2 (Nickel Plated) · X4 [Oil-free (Wetted Parts Degrease Washing) |
