- Fluid: air and inert gas
- Operating pressure: 0.1MPa to 1.0MPa
- Effective area (mm²): 40 to 103,6
- Coil rated voltage: 100, 200 VAC 50/60Hz; 24VDC
- Response time: 60 or less ms
- Ambient/fluid temp: -10 to +60°C
Series image. Appearance may vary by model and options.Directional control valves
VFS5000

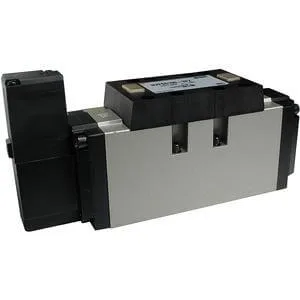

VFS5000, Base Mounted Valve, Plug-in & Non Plug-in, Metric
Explore the features, model options and technical documentation for VFS5000. Contact Pnoneks to select the full part number for your application.
SMC ·Pilot Operated 4/5 Port Solenoid Valves
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting VFS5000
Selecting VFS5000: review the full part number and your system conditions when considering this Directional control valves record. Share Function, Body Option, Direct Manual Override, Pilot, Voltage, Lead Wire, Surge Voltage Suppressor, Manual Override, Piping, Port Size, Thread, CE-Compliant, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- VFS5000
- Product group
- Directional control valves
- Function
- Pilot Operated 4/5 Port Solenoid Valves
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Function, Body Option, Direct Manual Override, Pilot, Voltage, Lead Wire, Surge Voltage Suppressor, Manual Override, Piping, Port Size, Thread, CE-Compliant
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Function | 1 (2 Position Single) · 2 (2 Position Double Solenoid) · 3 (3 Position Closed Centre) · 4 (3 Position Exhaust Centre) · 5 (3 Position Pressure Centre) · 6 (3 Position Perfect) |
| Body Option | 0 (Base Mounted Plug-in) · 1 (Base Mounted Non Plug-in) |
| Direct Manual Override | 0 (Standard) · 1 (Direct Manual Override) |
| Pilot | Internal Pilot · R (External Pilot) |
| Voltage | 1 (100 VAC 50/60 Hz) · 2 (200 VAC 50/60 Hz) · 3 (110 to 120 VAC, 50/60 Hz) · 4 (220 VAC, 50/60 Hz) · 5 (24 VDC) · 6 (12 VDC) · 7 (240 VAC 50/60 Hz) |
| Lead Wire | D (DIN Terminal) · E (Grommet Terminal) · F (Plug-in Conduit w/Terminal) · DO (DIN Connector without Connector) |
| Surge Voltage Suppressor | None · P (Non-rotating DIN Connector) · Z (Light and Surge Voltage Suppressor) · ZP (Light and Surge Surpressor, Non-rotating DIN Connector) |
| Manual Override | Non-locking Push Type (Flush) · A (Non-locking Push Extended Style) · B (Locking Slotted Type) · C (Locking Knob Style) |
| Piping | Side Ported (Or None in Case of w/o Sub-plate) · B (Bottom Ported) |
| Port Size | w/o Sub-plate · 03 (Sub-plate Plug-in Terminal 3/8, Non-plug-in Standard 3/8) · 04 (Sub-plate Plug-in Terminal 1/2, Non Plug-in Standard 1/2) · 06 (Sub-plate Plug-in Terminal 3/4, Non Plug-in Standard 3/4) |
| Thread | Rc (Or None in Case of w/o Sub-plate) · F (G) · N (NPT) · T (NPTF) |
| CE-Compliant | Q (CE-Marked) |
