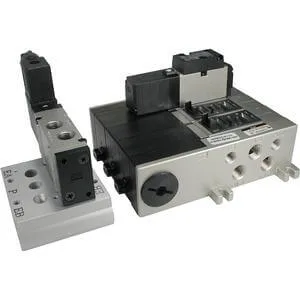

VV5FS2, Manifold for VFS2000 Series, Metric

Explore the features, model options and technical documentation for VV5FS2. Contact Pnoneks to select the full part number for your application.

SMC ·Pilot Operated 4/5 Port Solenoid Valves

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting VV5FS2

Selecting VV5FS2: review the full part number and your system conditions when considering this Directional control valves record. Share Base Mounted Wiring, Stations, Passage, Port Size, Thread, Control Unit, Voltage of Air Release Valve, Q, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: VV5FS2
Product group: Directional control valves
Function: Pilot Operated 4/5 Port Solenoid Valves
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Base Mounted Wiring, Stations, Passage, Port Size, Thread, Control Unit, Voltage of Air Release Valve, Q

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

VFS2000 series type manifolds
Thread type: Rc(PT)
Body ported, bar type manifold
Base mounted, plug-in & non plug-in
Port size available: 1/8, 1/4
Maximum stations: 15 (depending on style)

Selection fields published in the source
Parameter	Options / values
Base Mounted Wiring	01 (Plug-in, Insert Plug w/Lead Wire) · 01CD1 (Base Mounted Plug-in w/Multi-connector on D Side) · 01CU1 (Base Mounted Plug-in w/Multi-connector on U Side) · 01FD1 (Plug-in w/D-sub Connector on D Side) · 01FU1 (Plug-in w/D-sub Connectorr on U Side, Unit Style) · 01T (Plug-in w/Terminal Block) · 10 (Non Plug-in Individual Lead Wire Entry) · 20 (Individual Pilot EXH) · 30 (Common Pilot EXH)
Stations	2 Stations · 3 Stations · 4 Stations · 5 Stations · 6 Stations · 7 Stations · 8 Stations · 9 Stations · 10 Stations · 11 Stations · 12 Stations · 13 Stations · 14 Stations · 15 Stations
Passage	1 [P and EA,EB: Common, Port A,B: Side (Type 20/30, Port A,B: Top)] · 2 (P and EA,EB: Common, Port A,B: Bottom) · 3 (P: Common, EA,EB: Individual, Port A,B: Side) · 4 (P: Common, EA,EB: Individual, Port A,B: Bottom) · 5 (P: Individual, EA,EB: Common, Port A,B: Side) · 6 (P: Individual, EA,EB: Common, Port A,B: Bottom) · 7 (P: Individual, EA,EB: Individual, Port A,B: Side) · 8 (P: Individual, EA,EB: Individual, Port A,B: Bottom)
Port Size	01 (1/8) · 02 (1/4) · 03 (3/8)
Thread	Rc · F (G) · N (NPT) · T (NPTF)
Control Unit	None · A (Air Filter w/Auto Drain, Regulator, Air Release Valve) · AP (Air Filter w/Auto Drain, Regulator, Air Release Valve, Pressure Switch) · C (Air Release Valve, Blank Plates for Filter Regulator) · E (Air Release Valve) · F (Air Filter w/Auto Drain, Regulator, Blank Plate for Air Release Valve) · G (Air Filter w/Manual Drain, Regulator, Blank Plate for Air Release Valve) · M (Air Filter w/Manual Drain, Regulator, Air Release Valve) · MP (Air Filter w/Manual Drain, Regulator, Air Release Valve, Pressure Switch)
Voltage of Air Release Valve	w/o Air Release Valve · 1 (100 VAC 50/60 Hz) · 2 (200 VAC 50/60 Hz) · 3 (110 to 120 VAC, 50/60 Hz) · 4 (220 VAC, 50/60 Hz) · 5 (24 VDC) · 6 (12 VDC) · 7 (240 VAC 50/60 Hz)
Q	None · Q (CE-Marked)
