- Base mount plug-in manifold for VQC1000 valve
- Protective enclosure conforms to IP67 for protection from dust and moisture
- Maximum 12 stations available as standard
- Optional DIN rail mount
- 21 port sizes available

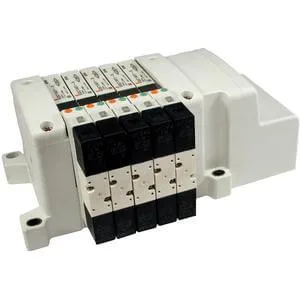

Series image. Appearance may vary by model and options.Directional control valves
VV5QC11-LD
VV5QC11-LD, Lead Wire
Explore the features, model options and technical documentation for VV5QC11-LD. Contact Pnoneks to select the full part number for your application.
SMC ·Pilot Operated 4/5 Port Solenoid Valves
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting VV5QC11-LD
Selecting VV5QC11-LD: review the full part number and your system conditions when considering this Directional control valves record. Share Stations, Port Size, Cable Length, Option 1, Option 2, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- VV5QC11-LD
- Product group
- Directional control valves
- Function
- Pilot Operated 4/5 Port Solenoid Valves
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Stations, Port Size, Cable Length, Option 1, Option 2
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Stations | 1 Station · 2 Stations · 3 Stations · 4 Stations · 5 Stations · 6 Stations · 7 Stations · 8 Stations · 9 Stations · 10 Stations · 11 Stations · 12 Stations · 13 Stations · 14 Stations · 15 Stations · 16 Stations · 17 Stations · 18 Stations · 19 Stations · 20 Stations · 21 Stations · 22 Stations · 23 Stations · 24 Stations |
| Port Size | B3 (Elbow Bottom Porting w/ø3.2 One-touch Fitting) · B4 (Elbow Bottom Ported w/Ø4 One-touch Fitting) · B5 (Bottom Porting M5 Thread) · B6 (Elbow Bottom Porting w/Ø6 One-touch Fitting) · BN1 (Bottom Ported Elbow w/ø1/8" NPT One-touch Fitting) · BN3 (Bottom Ported Elbow w/ø5/32" NPT One-touch Fitting) · BN7 (Bottom Ported Elbow w/ø1/4" NPT One-touch Fitting) · C3 (ø3.2 One-touch Fitting) · C4 (ø4 One-touch Fitting) · C6 (ø6 One-touch Fitting) · L3 (Elbow Top Ported w/Ø3.2 One-touch Fitting) · L4 (Elbow Top Ported ø4 One-touch Fitting) · L5 (M5 Threads Top Ported) · L6 (Elbow Top Ported w/ø6 One-touch Fitting) · LN1 (Top Ported Elbow w/1/8" One-touch Fitting) · LN3 (Top Ported Elbow w/5/32" One-touch Fitting) · LN7 (Top Ported Elbow w/1/4" NPT One-touch Fitting) · M5 Thread · N1 (1/8" One-touch Fitting) · N3 (5/32" One-touch Fitting) · N7 (1/4" One-touch Fitting) · NM (Mixed) · CM (Mixed Sizes and with Port Plug) · LM (Elbow port mixed sizes) · C0 (Without one-touch fitting) · BN1 (Bottom Ported Elbow w/ø1/8\" NPT One-touch Fitting) · BN3 (Bottom Ported Elbow w/ø5/32\" NPT One-touch Fitting) · BN7 (Bottom Ported Elbow w/ø1/4\" NPT One-touch Fitting) · LN1 (Top Ported Elbow w/1/8\" One-touch Fitting) · LN3 (Top Ported Elbow w/5/32\" One-touch Fitting) · LN7 (Top Ported Elbow w/1/4\" NPT One-touch Fitting) · N1 (1/8\" One-touch Fitting) · N3 (5/32\" One-touch Fitting) · N7 (1/4\" One-touch Fitting) |
| Cable Length | LD0 (Lead wire kit (25 core) 0.6 m lead wire) · LD1 (Lead wire kit (25 core) 1.5 m lead wire) · LD2 (Lead wire kit (25 core) 3 m lead wire) |
| Option 1 | None · B (Back Pressure Check Valve for All Stations) · BD (Back Pressure Check Valves, DIN Rail Mounting) · BDN (Back Pressure Check Valves, DIN Rail, Name Plate) · BN (Back Pressure Check Valves, Name Plate) · D (DIN Rail Mounting) · D0 (DIN Rail Mounting w/o DIN Rail) · DN (DIN rail mounting with name plate) · N (Name Plate) · K (Special wiring specifications (except for double wiring)) · BDK (All stations with back pressure check valve and DIN rail and special wiring) · BDKN (All stations with back pressure check valve and DIN rail and special wiring and name plate) · BKN (All stations with back pressure check valve and special wiring and name plate) · DK (DIN rail mounting, Special wiring specification (Not double wiring)) · DKN (DIN rail mounting and special wiring specification (Not double wiring ) and with name plate) · KN (Special wiring and name plate) · BK (All stations with back pressure check valve and special wiring) · BD (Back Pressure Check Valves, DIN Rail Mounting) |
| Option 2 | None · R (External Pilot) · RS (External Pilot, Silencer) · S (Built-in Silencer, Direct Exhaust) |
