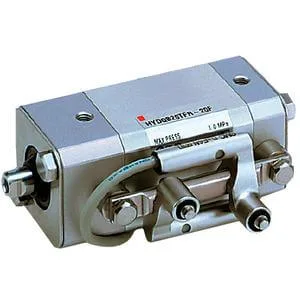

HY(D)Q, Hygienic Design Cylinder, Basic Type

Explore the features, model options and technical documentation for HY(D)Q. Contact Pnoneks to select the full part number for your application.

SMC ·Specialty Actuators

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting HY(D)Q

Selecting HY(D)Q: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Built-in Magnet, Bore Size, Thread, Seal, Stroke, Grease, Rod End, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: HY(D)Q
Product group: Pneumatic actuators
Function: Specialty Actuators
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Built-in Magnet, Bore Size, Thread, Seal, Stroke, Grease, Rod End, Auto Switch, Lead Wire or Pre-wired Connector, Number

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Hygienic design cylinder
Bore sizes (mm): 20, 25, 32, 40, 50, 63
Strokes up to 100mm depending on bore size
New switch style allows cylinder surface to be wiped off easily
New lubricating construction significantly improves water resistance
Male or femal rod end

Selection fields published in the source
Parameter	Options / values
Built-in Magnet	None · D (Magnet and Switch Rail)
Bore Size	20 mm · 25 mm · 32 mm · 40 mm · 50 mm · 63 mm
Thread	Rc (M5x0.8) · TF (G) · TN (NPT)
Seal	H (External: FKM) · R (NBR)
Stroke	[5-9-1] · [10-50-1] · [51-100-1]
Grease	Standard Grease (Not Approved for Food Industry) · F (Grease Approved for Food Industry)
Rod End	Female Thread · M (Male Thread)
Auto Switch	None · F6B (Water Resistant, LED, 2-Wire, Horizontal) · F6N (Water Resistant, LED, 3-Wire NPN) · F6P (Water Resistant, LED, 3-Wire PNP)
Lead Wire or Pre-wired Connector	0.5 m (Or None in the Case of No Switch) · L (3 m) · Z (5 m) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector)
Number	2 pcs. (Or None in Case of No Switch) · S (1 pc.)
