REAH

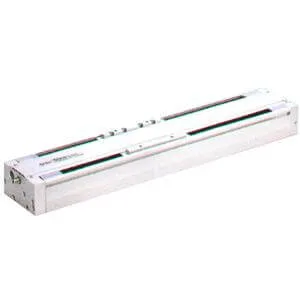

REAH, Sine Rodless Cylinder, High Precision Guide

Explore the features, model options and technical documentation for REAH. Contact Pnoneks to select the full part number for your application.

SMC ·Specialty Actuators

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting REAH

Selecting REAH: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Guide Suffix, Bore Size, Port Thread, Stroke, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: REAH
Product group: Pneumatic actuators
Function: Specialty Actuators
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Guide Suffix, Bore Size, Port Thread, Stroke, Auto Switch, Lead Wire or Pre-wired Connector, Number

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

High precision guide
Bore sizes: 10, 15, 20, 25, & 32(mm)
Strokes from 150mm through 1000mm
Auto-switch capable

Selection fields published in the source
Parameter	Options / values
Guide Suffix	1 Axis · T (2 Axes)
Bore Size	10 mm · 15 mm · 20 mm · 25 mm · 32 mm
Port Thread	Bore 10, 15: M Thread, Bore 20, 25, 32: Rc · TN (NPT) · TF (G)
Stroke	150 mm · 200 mm · 300 mm · 400 mm · 500 mm · 600 mm · 800 mm · 1000 mm
Auto Switch	No Switch · Y7BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · Y7BWV--Solid State Switch, 2-colour Indication, 2 Wire, Vertical · Y7NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · Y7NWV--Solid State Switch, 2-colour Indication, 3 Wire NPN, Vertical · Y7P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal · Y7PV--Solid State Switch, Gen. Purpose, 3 Wire PNP, Vertical · Y7PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · Y7PWV--Solid State Switch, 2-colour Indication, 3 Wire PNP, Vertical · Y59A--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal · Y59B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal · Y69A--Solid State Switch, Gen. Purpose, 3 Wire NPN, Vertical · Y69B--Solid State Switch, Gen. Purpose, 2 Wire, Vertical · Z73--Reed Switch, AC/DC Volt., 2 Wire, LED · Z76--Reed Switch, DC Volt., 3 Wire, LED · Z80--Reed Switch, AC/DC Volt., 2 Wire
Lead Wire or Pre-wired Connector	0.5 m (Or None in the Case of No Switch) · L (3 m) · Z (5 m) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector)
Number	2 pcs. (Or None in Case of No Switch) · S (1 pc.)
