- Base mount EX250 type plug-in manifold for VQC2000 valve
- Protective enclosure conforms to IP67 for protection from dust and moisture
- I/O serial transmission kit reduces connection work, minimizes wiring and saves space
- Maximum 24 stations available as standard
- Optional DIN rail mount
- 18 port sizes available
Series image. Appearance may vary by model and options.Directional control valves
VV5QC21-SD

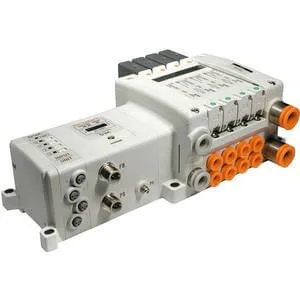

VV5QC21-SD, Serial Transmission: EX250 integrated-type (I/O)
Explore the features, model options and technical documentation for VV5QC21-SD. Contact Pnoneks to select the full part number for your application.
SMC ·Pilot Operated 4/5 Port Solenoid Valves
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting VV5QC21-SD
Selecting VV5QC21-SD: review the full part number and your system conditions when considering this Directional control valves record. Share Stations, Port Size, SI Unit, Number of Input Blocks, Input Block, Input Block COM, Option 1, Option 2, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- VV5QC21-SD
- Product group
- Directional control valves
- Function
- Pilot Operated 4/5 Port Solenoid Valves
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Stations, Port Size, SI Unit, Number of Input Blocks, Input Block, Input Block COM, Option 1, Option 2
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Stations | 1 Station · 2 Stations · 3 Stations · 4 Stations · 5 Stations · 6 Stations · 7 Stations · 8 Stations · 9 Stations · 10 Stations · 11 Stations · 12 Stations · 13 Stations · 14 Stations · 15 Stations · 16 Stations · 17 Stations · 18 Stations · 19 Stations · 20 Stations · 21 Stations · 22 Stations · 23 Stations · 24 Stations |
| Port Size | B4 (Elbow Bottom Ported w/Ø4 One-touch Fitting) · B6 (Elbow Bottom Porting w/Ø6 One-touch Fitting) · B8 (Elbow Bottom Porting w/Ø8 One-touch Fitting) · BN3 (Bottom Ported Elbow w/ø5/32" NPT One-touch Fitting) · BN7 (Bottom Ported Elbow w/ø1/4" NPT One-touch Fitting) · BN9 (Bottom Ported Elbow w/ø5/16" NPT One-touch Fitting) · C4 (ø4 One-touch Fitting) · C6 (ø6 One-touch Fitting) · C8 (ø8 One-touch Fitting) · L4 (Elbow Top Ported ø4 One-touch Fitting) · L6 (Elbow Top Ported w/ø6 One-touch Fitting) · L8 (Elbow Top Ported w/ø8 One-touch Fitting) · LN3 (Top Ported Elbow w/5/32" One-touch Fitting) · LN7 (Top Ported Elbow w/1/4" NPT One-touch Fitting) · LN9 (Top Ported Elbow w/5/16" One-touch Fitting ) · N3 (5/32" One-touch Fitting) · N7 (1/4" One-touch Fitting) · N9 (5/16" One-touch Fitting) · NM (Mixed) · CM (Mixed Sizes and with Port Plug) · LM (Elbow Port Mixed Sizes) · C0 (Without One-touch Fitting) · BN3 (Bottom Ported Elbow w/ø5/32\" NPT One-touch Fitting) · BN7 (Bottom Ported Elbow w/ø1/4\" NPT One-touch Fitting) · BN9 (Bottom Ported Elbow w/ø5/16\" NPT One-touch Fitting) · LN3 (Top Ported Elbow w/5/32\" One-touch Fitting) · LN7 (Top Ported Elbow w/1/4\" NPT One-touch Fitting) · LN9 (Top Ported Elbow w/5/16\" One-touch Fitting ) · N3 (5/32\" One-touch Fitting) · N7 (1/4\" One-touch Fitting) · N9 (5/16\" One-touch Fitting) |
| SI Unit | 0 (w/o SI Unit) · QN (DeviceNet®, -COM) · YN (Serial Kit for CANopen -COM) · TAN (AS-i 8 in/out - 31 Slave Modes - 2 Power Supply Systems -COM) · TBN (AS-i 4 in/out - 31 Slave Modes - 2 Power Supply Systems -COM) · TCN (AS-i 8 in/out - 31 Slave Modes - 1 Power Supply Systems -COM) · TDN (AS-i 4 in/out - 31 Slave Modes - 1 Power Supply Systems -COM) · ZENN (EtherNet/IP -COM) |
| Number of Input Blocks | w/o SI Unit/Input Block (SD0) · 0 (w/o Input Block) · 1 (Input Block 1 pc.) · 2 (Input Block 2 pcs.) · 3 (Input Block 3 pcs.) · 4 (Input Block 4 pcs.) · 5 (Input Block 5 pcs.) · 6 (Input Block 6 pcs.) · 7 (Input Block 7 pcs.) · 8 (Input Block 8 pcs.) |
| Input Block | w/o Input Block (SD0) · 1 (M12, 2 Inputs) · 2 (M12, 4 Inputs) · 3 [M8, 4 Inputs (3 Pins)] |
| Input Block COM | PNP(+) or w/o SI/Input Block · N [NPN (-)] |
| Option 1 | None · B (Back Pressure Check Valve for All Stations) · BD (Back Pressure Check Valves, DIN Rail Mounting) · BD0 (Back Pressure Check Valves, DIN Rail Mounting Bracket w/o Din Rail) · BD0N (Back Pressure Check Valves,DIN Rail Mtg Brkt w/o Din Rail, Name Plate) · BDN (Back Pressure Check Valves, DIN Rail, Name Plate) · BN (Back Pressure Check Valves, Name Plate) · D (DIN Rail Mounting) · D0 (DIN Rail Mounting w/o DIN Rail) · D0N (DIN Rail Mounting w/o DIN Rail, w/Name Plate) · DN (DIN rail mounting with name plate) · N (Name Plate) · K (Special wiring specifications) · BDK (All Stations with Back Pressure Check Valve and DIN Rail and Special Wiring) · BDKN (All Stations with Back Pressure Check Valve and DIN Rail and Special Wiring and Name Plate) · BKN (All Stations With Back Pressure Check Valve and Special Wiring and Name Plate) · DK (DIN Rail and Special Wiring) · DKN (DIN Rail and Special Wiring and Name Plate) · KN (Special Wiring and Name Plate) · BK (All Stations with Back Pressure Check Valve and Special Wiring) |
| Option 2 | None · R (External Pilot) · RS (External Pilot, Silencer) · RST (External Pilot, Silencer, Branched P and R Ports on U Side) · RT (External Pilot, Branched P and R Ports on U Side) · S (Built-in Silencer, Direct Exhaust) · ST (Silencer, Branched P and R Ports on U Side) · T (Branched P and R Ports on U Side) |
