SS5Y5

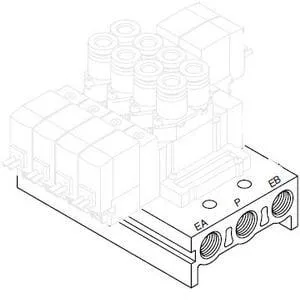

SS5Y5, 5000 Series, Bar Stock Manifold, Individual Wiring

Explore the features, model options and technical documentation for SS5Y5. Contact Pnoneks to select the full part number for your application.

SMC ·Pilot Operated 4/5 Port Solenoid Valves

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting SS5Y5

Selecting SS5Y5: review the full part number and your system conditions when considering this Directional control valves record. Share Manifold Type, Valve Stations, A, B Port Size, CE-Compliant, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: SS5Y5
Product group: Directional control valves
Function: Pilot Operated 4/5 Port Solenoid Valves
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Manifold Type, Valve Stations, A, B Port Size, CE-Compliant

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Manifold for SY5000 Individual wiring
Maximum 20 stations available as standard
Valves individually wired
15 port sizes available

Selection fields published in the source
Parameter	Options / values
Manifold Type	20 (Body Ported, Bar Manifold, Individual Wiring) · 41 (Base Mounted, Bar Manifold, Compact, Individual Wiring) · 42 (Base Mounted, Bar Manifold, External Pilot Capable, Individual Wiring)
Valve Stations	2 Stations · 3 Stations · 4 Stations · 5 Stations · 6 Stations · 7 Stations · 8 Stations · 9 Stations · 10 Stations · 11 Stations · 12 Stations · 13 Stations · 14 Stations · 15 Stations · 16 Stations · 17 Stations · 18 Stations · 19 Stations · 20 Stations
A, B Port Size	None · 00F (G) · 00N (NPT) · 00T (NPTF) · 01 (Rc1/8) · 01F (G1/8) · 01N (NPT1/8) · 01T (NPTF1/8) · 02 (Rc1/4) · 02F (G1/4) · 02N (NPT1/4) · 02T (NPTF1/4) · C6 (ø6 One-touch Fitting) · C6F (ø6 One-touch Fitting G) · C6N (ø6 One-touch Fitting NPT) · C6T (ø6 One-touch Fitting NPTF) · C8 (ø8 One-touch Fitting) · C8F (ø8 One-touch Fitting G) · C8N (ø8 One-touch Fitting NPT) · C8T (ø8 One-touch Fitting NPTF) · N7 (1/4" One-touch Fitting) · N7N (1/4" One-touch Fitting NPT) · N7T (1/4" One-touch Fitting) · N9 (5/16" One-touch Fitting) · N9N (5/16" One-touch Fitting NPT) · N9T (5/16" One-touch Fitting) · N7 (1/4\" One-touch Fitting) · N7N (1/4\" One-touch Fitting NPT) · N7T (1/4\" One-touch Fitting) · N9 (5/16\" One-touch Fitting) · N9N (5/16\" One-touch Fitting NPT) · N9T (5/16\" One-touch Fitting)
CE-Compliant	Q (CE-Marked)
