SS5Y3-45S*

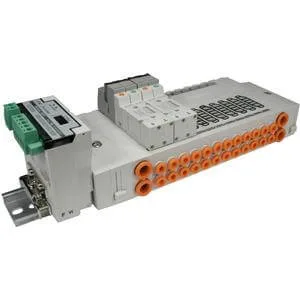

SS5Y3-45S*, 3000 Series, Stacking Manifold, DIN Rail Mount, Serial Transmission

Explore the features, model options and technical documentation for SS5Y3-45S*. Contact Pnoneks to select the full part number for your application.

SMC ·Pilot Operated 4/5 Port Solenoid Valves

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting SS5Y3-45S*

Selecting SS5Y3-45S*: review the full part number and your system conditions when considering this Directional control valves record. Share SI Unit, Valve Stations, Mounting Position, Pilot Type, A, B Port Size, Option, CE-Compliant, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: SS5Y3-45S*
Product group: Directional control valves
Function: Pilot Operated 4/5 Port Solenoid Valves
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: SI Unit, Valve Stations, Mounting Position, Pilot Type, A, B Port Size, Option, CE-Compliant

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Serial interface manifold for SY3000 base mounted valves
Minimizes wire mass and wire connection labor
Maximum 16 stations available as standard
6 port sizes available
DIN rail mounted
Common supply and exhaust can be located on U, D or both sides

Selection fields published in the source
Parameter	Options / values
SI Unit	0 (w/o SI Unit) · Q (DeviceNet® Omron CompoBus/D) · R1 (OMRON CompoBus/S - 16 Outputs) · R2 (OMRON CompoBus/S - 8 Outputs) · V (CC-link System (Mitsubishi Electric Corp.)) · ZB (CompoNet™, Positive Common) · ZBN (CompoNet™, Negative Common)
Valve Stations	2 Stations · 3 Stations · 4 Stations · 5 Stations · 6 Stations · 7 Stations · 8 Stations · 9 Stations · 10 Stations · 11 Stations · 12 Stations · 13 Stations · 14 Stations · 15 Stations · 16 Stations
Mounting Position	B (Both sides (2 to 16 stations)) · D (D side (2 to 10 stations)) · U (U side (2 to 10 stations))
Pilot Type	Standard Internal Pilot · R (External Pilot) · RS (External Pilot, Silencer) · S (Internal Pilot, Built-in Silencer)
A, B Port Size	C4 (ø4 One-touch Fitting) · C6 (ø6 One-touch Fitting) · N3 (5/32" One-touch Fitting) · N7 (1/4" One-touch Fitting) · N3 (5/32\" One-touch Fitting) · N7 (1/4\" One-touch Fitting)
Option	Direct Mounting · D3 (DIN Rail Mounting for 3 Stations) · D4 (DIN Rail Mounting for 4 Stations) · D5 (DIN Rail Mounting for 5 Stations) · D6 (DIN Rail Mounting for 6 Stations) · D7 (DIN Rail Mounting for 7 Stations) · D8 (DIN Rail Mounting for 8 Stations) · D9 (DIN Rail Mounting for 9 Stations) · D10 (DIN Rail Mounting for 10 Stations) · D11 (DIN Rail Mounting for 11 Stations) · D12 (DIN Rail Mounting for 12 Stations) · D13 (DIN Rail Mounting for 13 Stations) · D14 (DIN Rail Mounting for 14 Stations) · D15 (DIN Rail Mounting for 15 Stations) · D16 (DIN Rail Mounting for 16 Stations) · D17 (DIN Rail Mounting for 17 Stations) · D18 (DIN Rail Mounting for 18 Stations) · D19 (DIN Rail Mounting for 19 Stations) · D20 (DIN Rail Mounting for 20 Stations)
CE-Compliant	Q (CE-Marked)
