C(D)LS

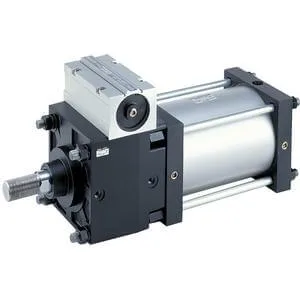

C(D)LS, Locking Cylinder, Double Acting, Single Rod, Auto-switch Capable

Explore the features, model options and technical documentation for C(D)LS. Contact Pnoneks to select the full part number for your application.

SMC ·Specialty Actuators

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting C(D)LS

Selecting C(D)LS: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Magnet, Mounting, Tube, Bore Size, Thread, Stroke, Option, Cylinder Switch Type, Lead Wire or Pre-wired Connector, Number, Lock Unit Built-in Magnet, Lock Unit Switch Type, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: C(D)LS
Product group: Pneumatic actuators
Function: Specialty Actuators
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Magnet, Mounting, Tube, Bore Size, Thread, Stroke, Option, Cylinder Switch Type, Lead Wire or Pre-wired Connector, Number, Lock Unit Built-in Magnet, Lock Unit Switch Type

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Fail safe construction
Equal holding force in both directions
Lock unit switch
Improved maintainability
Strokes to 1600 depending upon mounting brackets
Auto switch capable cylinder
Auto switch capable brake unit

Selection fields published in the source
Parameter	Options / values
Magnet	None · D (Built-in)
Mounting	B (Standard) · C (Single Clevis) · D (Double Clevis) · F (Front Flange) · G (Rear Flange) · L (Foot) · T (Centre Trunnion)
Tube	125~160 Aluminum (with or w/o magnet);180~200 Steel (w/o magnet),Aluminum (w/magnet);250 Steel · F (125 to 160 mm Steel)
Bore Size	125 mm · 140 mm · 160 mm · 180 mm · 200 mm · 250 mm
Thread	Rc · TN (NPT) · TF (G)
Stroke	[125-134-1] · [135-149-1] · [150-1000-1] · [1001-1200-1] · [1201-1600-1] · [1601-2000-1] · [2001-2400-1]
Option	Cushion on Both Sides · H (Rear Rubber Bumper) · HJ (Rear Rubber Bumber and Nylon Tarpaulin Rod Boot) · HK (Rear Rubber Bumber and Heat Resistant Tarpaulin Rod Boot) · J (Nylon Tarpaulin Rod Boot and Rubber Bumper at Both Ends) · JN (Nylon Tarpaulin Rod Boot w/o Rubber Bumpers) · JR (Nylon Tarpaulin Rod Boot and Front Rubber Bumper) · K (Heat Resistant Tarpaulin Rod Boot and Rubber Bumper at Both Ends) · KN (Heat Resistant Tarpaulin Rod Boot w/o Rubber Bumpers) · KR (Heat Resistant Tarpaulin Rod Boot and Front Rubber Bumper) · N (w/o Rubber Bumper) · R (Front Rubber Bumper)
Cylinder Switch Type	No Switch · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal, 0.5 m · M9BA--Solid State Switch, Water Resist., 2 Wire, Horizontal · M9BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal, 0.5 m · M9NA--Solid State Switch, Water Resist., 3 Wire NPN, Horizontal · M9NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal, 0.5 m · M9PA--Solid State Switch, Water Resist., 3 Wire PNP, Horizontal · M9PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · F9G--Solid State Switch, 3 Wire NPN, Horizontal · F9H--Solid State Switch, 3 Wire PNP, Vertical · Y7G--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal · Y7H--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal · A33--Reed Switch, DC Volt. >5<24, LED, Terminal · A90--Reed Switch, AC/DC Volt. <100, Horizontal, 0.5 m · A93--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal, 0.5 m · A96--Reed Switch, DC Volt. 4-8, LED, Horizontal, 0.5 m · A34--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, Terminal · A44--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, DIN Terminal · A54--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, 0.5 m · A59W--Reed Switch, 2-colour Indication, DC Volt. >5<24, LED, 0.5 m · F59F--Solid State Switch, Diagnostic, 4 Wire NPN, 0.5 m · G39--Solid State Switch, Gen. Purpose, 3 Wire NPN, LED, Terminal Conduit · J51--Solid State Switch, Gen. Purpose, 2 Wire, 0.5 m · K39--Solid State Switch, Gen. Purpose, 2 Wire, Terminal Conduit
Lead Wire or Pre-wired Connector	0.5 m (Or None in the Case of No Switch) · M (1m) · L (3 m Lead Wire) · Z (5 m Lead Wire) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector)
Number	2 pcs. (Or None in Case of No Switch) · S (1 pc.)
Lock Unit Built-in Magnet	None · D (Built-in)
Lock Unit Switch Type	No Switch · A90--Reed Switch, AC/DC Volt. <100, Horizontal, 0.5 m · A90L--Reed Switch, AC/DC Volt. <100, Horizontal, 3 m · A93--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal, 0.5 m · A93L--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal, 3 m · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal, 0.5 m · M9BL--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal, 3 m · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal, 0.5 m · M9NL--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal, 3 m · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal, 0.5 m · M9PL--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal, 3 m
