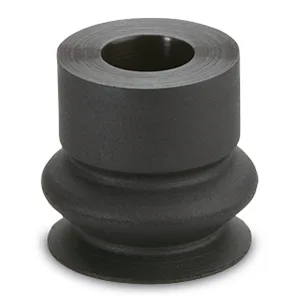

Bellows, General Purpose thin vacuum pad

Explore the features, model options and technical documentation for Bellows, General Purpose thin vacuum pad. Contact Pnoneks to select the full part number for your application.

SMC ·Vacuum Pads

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting Bellows, General Purpose thin vacuum pad

Selecting Bellows, General Purpose thin vacuum pad: review the full part number and your system conditions when considering this Vacuum technology record. Share Mounting specification, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: Bellows, General Purpose thin vacuum pad
Product group: Vacuum technology
Function: Vacuum Pads
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Mounting specification

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Built for versatility

Secure handling for various surfaces – Wide range of pad materials and shapes available
Easy integration into any system – Multiple mounting options for diverse applications
Versatile use across industries – Compatible with a variety of workpieces and conditions

More features

Pad sizes: From Ø 4 to Ø 20
Available materials: NBR (Nitrile rubber), Silicone rubber, Urethane rubber, FKM (Fluoro rubber), Conductive NBR, Conductive silicone rubber, semiconductor silicone rubber
Working temperature range: NBR: 0 to 120 ºC Silicone rubber: -30 to 200 ºC Urethane rubber: 0 to 60 ºC Fluoro rubber: 0 to 250 ºC Conductive rubber: 0 to 100 ºC Conductive/Semiconductor silicone rubber: -10 to 200 ºC
NBR: 0 to 120 ºC
Silicone rubber: -30 to 200 ºC
Urethane rubber: 0 to 60 ºC
Fluoro rubber: 0 to 250 ºC
Conductive rubber: 0 to 100 ºC
Conductive/Semiconductor silicone rubber: -10 to 200 ºC

Selection fields published in the source
Parameter	Options / values
Mounting specification	Vacuum pad only · Vertical adapter
