- Action: electric type, air type
- Applicable fluid: air
- Power consumption: 0.35 W
- Tank connected type.

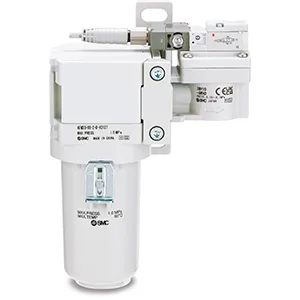

Series image. Appearance may vary by model and options.Fluid control
IBV-X101
Impact Blow Valve, Tank Connected Type – IBV-X101
Explore the features, model options and technical documentation for IBV-X101. Contact Pnoneks to select the full part number for your application.
SMC ·Process Valves
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting IBV-X101
Selecting IBV-X101: review the full part number and your system conditions when considering this Fluid control record. Share Series, Tank Mounting Direction, Voltage/Electrical entry, Electrical Entry Direction, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- IBV-X101
- Product group
- Fluid control
- Function
- Process Valves
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Series, Tank Mounting Direction, Voltage/Electrical entry, Electrical Entry Direction
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Series | 10 (Solenoid valve type) · 11 (Air Operated Type without Pulse Function) · 12 (Air Operated Type with Pulse Function) |
| Tank Mounting Direction | 1 (Vertical) · 2 (Lateral) |
| Voltage/Electrical entry | None · 5L (24 VDC, L Plug Connector w/ 300mm Lead Wire) · 5LO (24 VDC, L Plug Connector w/o Lead Wire) · 5WA (24 VDC, M8 Connector w/ 300mm Cable) · 5WAO (24 VDC, M8 Connector w/o Cable) |
| Electrical Entry Direction | None or 0° · A (90°) · B (180°) · C (270°) |
