- Compatible with battery manufacturing
- Maximum gripping force per finger 318 N at 0.5 MPa
- Double acting
- Repeatability: ±0.01 mm
- Max. operating frequency: 60 c.p.m.
Series image. Appearance may vary by model and options.Pneumatic actuators
25A-MHZJ2-X6100

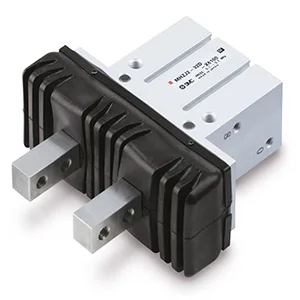

With Dust Cover, Big Bore Size - 25A-MHZJ2-X6100
Explore the features, model options and technical documentation for 25A-MHZJ2-X6100. Contact Pnoneks to select the full part number for your application.
SMC ·Pneumatic Grippers, Escapements & EOAT for Cobots
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting 25A-MHZJ2-X6100
Selecting 25A-MHZJ2-X6100: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Bore Size, Dust Cover, Auto Switch, Lead Wire or Pre-wired Connector, Number, Special Specifications, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- 25A-MHZJ2-X6100
- Product group
- Pneumatic actuators
- Function
- Pneumatic Grippers, Escapements & EOAT for Cobots
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Bore Size, Dust Cover, Auto Switch, Lead Wire or Pre-wired Connector, Number, Special Specifications
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Bore Size | 32mm · 40mm |
| Dust Cover | Chloroprene rubber (CR) · F (Fluoro Rubber (FKM)) · S (Silicone Rubber (SI)) |
| Auto Switch | No Switch · M9B-900--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal · M9BV-900--Solid State Switch, Gen. Purpose, 2 Wire, Vertical · M9BW-900--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · M9BWV-900--Solid State Switch, 2-colour Indication, 2 Wire, Vertical · M9N-900--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal · M9NV-900--Solid State Switch, Gen. Purpose, 3 Wire NPN, Vertical · M9NW-900--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · M9NWV-900--Solid State Switch, 2-colour Indication, 3 Wire NPN, Vertical · M9P-900--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal · M9PV-900--Solid State Switch, Gen. Purpose, 3 Wire PNP, Vertical · M9PW-900--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · M9PWV-900--Solid State Switch, 2-colour Indication, 3 Wire PNP, Vertical |
| Lead Wire or Pre-wired Connector | 0.5 m (Or None in the Case of No Switch) · M (1m) · L (3 m) · Z (5 m) |
| Number | 2 pcs. (Or None in Case of No Switch) · S (1 pc.) |
| Special Specifications | Basic type · A (Heat Resistance) · B (Fluororubber Seal) |
