CKZT

Catalogue variant 1

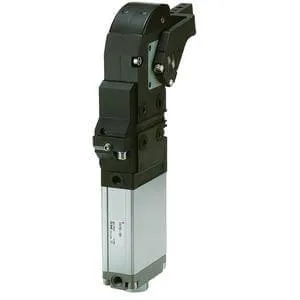

CKZT, Power Clamp Cylinder w/o Arm

Explore the features, model options and technical documentation for CKZT. Contact Pnoneks to select the full part number for your application.

SMC ·Clamp Cylinders

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting CKZT

Selecting CKZT: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Bore Size, Cylinder Port, Arm Opening Angle, Switch Type, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: CKZT
Product group: Pneumatic actuators
Function: Clamp Cylinders
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Bore Size, Cylinder Port, Arm Opening Angle, Switch Type

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Bore sizes: 50, 63, 80
Port thread type G or NPT
Space saving design
8 arm opening angles
Turck or P & F switch type

Selection fields published in the source
Parameter	Options / values
Bore Size	50 mm · 63 mm · 80 mm
Cylinder Port	G · TN (NPT)
Arm Opening Angle	30° · 45° · 60° · 75° · 90° · 105° · 120° · 135°
Switch Type	T (Turck) · P (P & F)
