- Port size: 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2
- Body ported
- Normally Closed only (Normally Open only for vacuum).

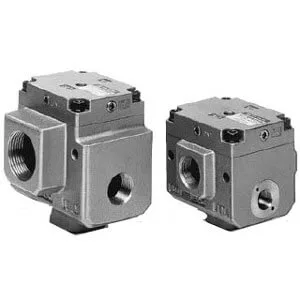

Series image. Appearance may vary by model and options.Directional control valves
VPA3145/3165/3185
VPA3145/3165/3185, 3 Port Air Operated Valve
Explore the features, model options and technical documentation for VPA3145/3165/3185. Contact Pnoneks to select the full part number for your application.
SMC ·Air Operated Valves & Manifolds
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting VPA3145/3165/3185
Selecting VPA3145/3165/3185: review the full part number and your system conditions when considering this Directional control valves record. Share Body Size, Valve Type, Port Size, Thread Type, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- VPA3145/3165/3185
- Product group
- Directional control valves
- Function
- Air Operated Valves & Manifolds
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Body Size, Valve Type, Port Size, Thread Type
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Body Size | 4 (1/2) · 6 (1) · 8 (1 1/2) |
| Valve Type | For Ordinary Pressure · V (For Vacuum and Low Pressure) |
| Port Size | 03 (3/8, 10A) · 04 (1/2, 15A) · 06 (3/4, 20A) · 10 (1, 25A) · 12 (1 1/4, 32A) · 14 (1 1/2, 40A) · 20 (2, 50A) |
| Thread Type | Rc · F (G) · N (NPT) · T (NPTF) |
