MHZL2

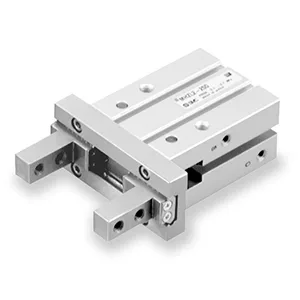

2 Finger Gripper, Parrallel Style, Long Stroke - MHZL2

Explore the features, model options and technical documentation for MHZL2. Contact Pnoneks to select the full part number for your application.

SMC ·Pneumatic Grippers, Escapements & EOAT for Cobots

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting MHZL2

Selecting MHZL2: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Bore Size, Action, Finger Option, Body Option, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: MHZL2
Product group: Pneumatic actuators
Function: Pneumatic Grippers, Escapements & EOAT for Cobots
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Bore Size, Action, Finger Option, Body Option, Auto Switch, Lead Wire or Pre-wired Connector, Number

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Maximum gripping force per finger 104 N at 0.5 MPa
Double acting and single acting
Repeatability: ±0.01 mm
Max. operating frequency: 120 c.p.m.

Selection fields published in the source
Parameter	Options / values
Bore Size	10 mm · 16 mm · 20 mm · 25 mm
Action	C (Single Acting N.C.) · D (Double Acting) · S (Single Acting N.O.)
Finger Option	Basic Type · 1 (Side Tap Mounting) · 2 (Opening/Closing Direction Through Hole) · 3 (Flat Type)
Body Option	Basic Type · E (End Boss, Side Ported) · K (End Boss, One-touch Fitting Ø4) · M (End Boss, M5 Port) · W (End Boss, Ø4 Coaxial One-touch Fitting)
Auto Switch	No Switch · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal, 0.5 m · M9BV--Solid State Switch, Gen. Purpose, 2 Wire, Vertical, 0.5 m · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal, 0.5 m · M9NV--Solid State Switch, Gen. Purpose, 3 Wire NPN, Vertical, 0.5 m · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal, 0.5 m · M9PV--Solid State Switch, Gen. Purpose, 3 Wire PNP, Vertical, 0.5 m · M9BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · M9BWV--Solid State Switch, 2-colour Indication, 2 Wire, Vertical · M9NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · M9NWV--Solid State Switch, 2-colour Indication, 3 Wire NPN, Vertical · M9PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · M9PWV--Solid State Switch, 2-colour Indication, 3 Wire PNP, Vertical · F8B--Solid State Switch, Gen. Purpose, 2 Wire, Vertical, 0.5 m · F8N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Vertical, 0.5 m · F8P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Vertical, 0.5 m
Lead Wire or Pre-wired Connector	0.5 m (Or None in the Case of No Switch) · M (1m) · L (3 m) · Z (5 m) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector)
Number	2 pcs. (Or None in the Case of No Switch) · S (1 pc.)
