- Double acting, single rod, standard type
- Bore sizes (mm): 40, 50, 63, 80, 100
- Standard strokes (mm): 1 to 1000
- Maximum operating pressure: 1.0MPa
- Auto switch capable

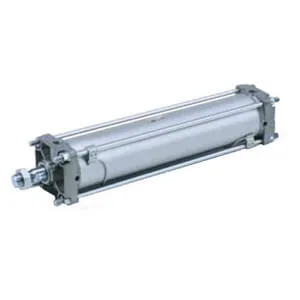

Series image. Appearance may vary by model and options.Pneumatic actuators
C(D)A2-Z-XC10
C(D)A2-Z-XC10, Air Cylinder Standard Type, Double Acting, Dual Stroke Cylinder/Double Rod Type
Explore the features, model options and technical documentation for C(D)A2-Z-XC10. Contact Pnoneks to select the full part number for your application.
SMC ·Linear Actuators and Linear Acting Cylinders
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting C(D)A2-Z-XC10
Selecting C(D)A2-Z-XC10: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Magnet, Mounting, Tube Material, Bore Size, Stroke A (For other strokes, consult SMC), Rod Boot A, Cushion A, Stroke B (Maximum value for A+B: 1000 mm), Rod Boot B, Cushion B, Bracket 1, Bracket 2, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- C(D)A2-Z-XC10
- Product group
- Pneumatic actuators
- Function
- Linear Actuators and Linear Acting Cylinders
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Magnet, Mounting, Tube Material, Bore Size, Stroke A (For other strokes, consult SMC), Rod Boot A, Cushion A, Stroke B (Maximum value for A+B: 1000 mm), Rod Boot B, Cushion B, Bracket 1, Bracket 2, Auto Switch, Lead Wire or Pre-wired Connector, Number
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Magnet | None · D (Built-in) |
| Mounting | B (Basic) · L (Axial Foot) · F (Rod Flange) |
| Tube Material | Aluminium Tube · F (Steel Tube) |
| Bore Size | 40 mm · 50 mm · 63 mm · 80 mm · 100 mm |
| Stroke A (For other strokes, consult SMC) | 25 mm · 50 mm · 75 mm · 100 mm · 125 mm · 150 mm · 175 mm · 200 mm · 250 mm · 300 mm · 350 mm · 400 mm · 450 mm · 500 mm · 600 mm · 700 mm |
| Rod Boot A | None · J (Nylon Tarpaulin) · K (Heat Resistant Tarpaulin) |
| Cushion A | Air Cushion · N (Rubber Bumper) |
| Stroke B (Maximum value for A+B: 1000 mm) | [1-9-1] · [10-14-1] · [15-19-1] · [20-24-1] · [25-29-1] · [30-34-1] · [35-300-1] · [301-400-1] · [401-500-1] · [501-550-1] · [551-600-1] · [601-650-1] · [651-700-1] · [701-750-1] · [751-800-1] · [801-825-1] · [826-850-1] · [851-875-1] · [876-900-1] · [901-925-1] · [926-950-1] · [951-975-1] |
| Rod Boot B | None · J (Nylon Tarpaulin) · K (Heat Resistant Tarpaulin) |
| Cushion B | Air Cushion · N (Rubber Bumper) |
| Bracket 1 | None · N (Pivot Bracket) |
| Bracket 2 | None · V (Single Knuckle Joint) · W (Double Knuckle Joint) |
| Auto Switch | No Switch · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal · M9BA--Solid State Switch, Water Resist., 2 Wire, Horizontal · M9BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal · M9NA--Solid State Switch, Water Resist., 3 Wire NPN, Horizontal · M9NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal · M9PA--Solid State Switch, Water Resist., 3 Wire PNP, Horizontal · M9PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · A33--Reed Switch, DC Volt. >5<24, LED, Terminal · A33C--Reed Switch, DC Volt. >5<24, LED, Terminal · A34--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, Terminal · A34C--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, Terminal · A44--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, DIN Terminal · A44C--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, DIN Terminal · A54--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED · A59W--Reed Switch, 2-colour Indication, DC Volt. >5<24, LED · A64--Reed Switch, DC Volt. >5<24, AC Volt. <200 · A90--Reed Switch, AC/DC Volt. <100, Horizontal · A93--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal · A96--Reed Switch, DC Volt. 4-8, LED, Horizontal · B54--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, Horizontal · B59W--Reed Switch, 2-colour Indication, DC Volt. >5<24, LED, Horizontal · B64--Reed Switch, DC Volt. >5<24, AC Volt. <200, Horizontal · G39--Solid State Switch, Gen. Purpose, 3 Wire NPN, LED, Terminal Conduit · G39C--Solid State Switch, Gen. Purpose, 3 Wire NPN, Terminal Conduit · G5P--Solid State Switch, Gen. Purpose, 3 Wire PNP · G5PW--Solid State Switch, 2-colour Indication, 3 Wire PNP · G59--Solid State Switch, Gen. Purpose, 3 Wire NPN · G59F--Solid State Switch, Diagnostic, 4 Wire NPN · G59W--Solid State Switch, 2-colour Indication, 3 Wire NPN · K39--Solid State Switch, Gen. Purpose, 2 Wire, Terminal Conduit · K39C--Solid State Switch, Gen. Purpose, 2 Wire, Terminal Conduit · K59--Solid State Switch, Gen. Purpose, 2 Wire · K59W--Solid State Switch, 2-colour Indication, 2 Wire · P4DW--Solid State Switch, 2-colour Indication, Magnetic Field Resist., 2 Wire |
| Lead Wire or Pre-wired Connector | 0.5 m (Or None in the Case of No Switch) · M (1m) · L (3 m) · Z (5 m) · SC (0.3 m Cord Length, M12-4 Pin Connector, 3 & 4 Out) · SE (0.3 m Cord Length, M12-4 Pin Connector, 1 & 4 Out) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector) · LDPC (3.0 m Cord Length, M12-4 Pin Connector) |
| Number | 2 pcs. (Or None in Case of No Switch) · S (1 pc.) |
