VVA72

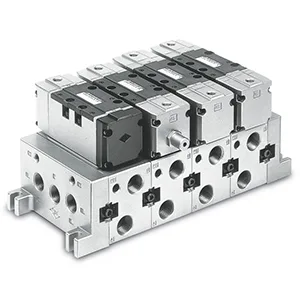

VVA72, Manifold Base for VSA7-8 Series Valve

Explore the features, model options and technical documentation for VVA72. Contact Pnoneks to select the full part number for your application.

SMC ·Air Operated Valves & Manifolds

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting VVA72

Selecting VVA72: review the full part number and your system conditions when considering this Directional control valves record. Share Stations, AB Port, Air Release Valve, PR Port, Pilot Supply Port, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: VVA72
Product group: Directional control valves
Function: Air Operated Valves & Manifolds
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Stations, AB Port, Air Release Valve, PR Port, Pilot Supply Port

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Manifold block size: ISO size 2
Applicable air operated valve: ISO size 2
Number of stations: 1 to 10.

Selection fields published in the source
Parameter	Options / values
Stations	1 Station · 2 Stations · 3 Stations · 4 Stations · 5 Stations · 6 Stations · 7 Stations · 8 Stations · 9 Stations · 10 Stations
AB Port	03L (3/8, Left) · 03R (3/8, Right) · 03Y (3/8, Bottom) · 04L (1/2, Left) · 04R (1/2, Right) · 04Y (1/2, Bottom)
Air Release Valve	None · E (Air Release Valve)
PR Port	04B (1/2, Both Sides) · 04D (1/2, Bottom) · 04U (1/2, Top) · 06B (3/4, Both Sides) · 06D (3/4, Bottom) · 06U (3/4, Top)
Pilot Supply Port	1 (Valve Body Size) · 2 (Manifold Block Size)
