CK1-Z1

Catalogue variant 2

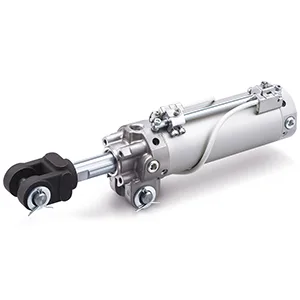

Clamp cylinder – CK1-Z1

Explore the features, model options and technical documentation for CK1-Z1. Contact Pnoneks to select the full part number for your application.

SMC ·Clamp Cylinders

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting CK1-Z1

Selecting CK1-Z1: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Magnet, Clevis, Bore Size, Thread, Stroke, End Bracket, Option, Auto Switch, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: CK1-Z1
Product group: Pneumatic actuators
Function: Clamp Cylinders
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Magnet, Clevis, Bore Size, Thread, Stroke, End Bracket, Option, Auto Switch, Number

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Adaptative clamping

Adjust easily your clamping movement – Integrated speed controller valves and air cushion
Get design flexibility – Switch mounting rod and piping port are mountable in three orientations
Control precisely your process – Standard and magnetic field resistant autoswitcH can be mounted.

And much more

Bore sizes (mm): 40, 50, 63
Integrated speed controller valves
Air cushion in the unclamped side
Switch mounting rod and piping port are mountable in three orientations
3 types of clevis widths: 12.5 mm, 16.5 mm, 19.5 mm.

Selection fields published in the source
Parameter	Options / values
Magnet	P1 (Built-in Strong Magnet Type) · G1 (Built-in Standard Magnet Type)
Clevis	A (16.5mm) · B (19.5mm) · C (12.5 mm)
Bore Size	40 mm · 50 mm · 63 mm
Thread	Rc1/4 · TF (G1/4) · TN (NPT1/4)
Stroke	50 mm · 75 mm · 100 mm · 125 mm · 150 mm · 200 mm
End Bracket	None · I (Single Knuckle Joint (M6 without tap)) · IA (Single Knuckle Joint (M6 with tap)) · Y (Double Knuckle Joint (M6 without Tap)) · YA (Double Knuckle Joint (M6 with Tap))
Option	None · B (Limit switch mounting) · D (Dog Fitting) · L (Foot) · K (Pedestal) · BD (Limit Switch Mounting Base + Dog Fitting) · BK (Limit Switch Mounting Base + Pedestal) · DK (Dog Fitting + Pedestal) · BDK (Limit Switch Mounting Base + Dog Fitting + Pedestal)
Auto Switch	Without auto switch - Without switch mounting rod · P (Without autoswitch - With switch mounting rod) · P79WSE (Connector - 2 wire - 0.3 m) · P74L (Connector - 2 wire - 3 m) · P74Z (Connector - 2 wire - 5 m) · P4DWSC (Connector - 2 wire (pin 3-4) - 0.3 m) · P4DWSE (Connector - 2 wire (pin 1-4) - 0.3 m) · P4DWL (Grommet - 2 wire - 3 m) · P4DWZ (Grommet - 2 wire - 5 m) · P3DWASC (Connector - 2 wire (pin 3-4) - 0.3 m) · P3DWASE (Connector - 2 wire (pin 1-4) - 0.3 m) · P3DWA (Grommet - 2 wire - 0.5 m) · P3DWAL (Grommet - 2 wire - 3 m) · P3DWAZ (Grommet - 2 wire - 5 m) · Standard · Magnetic Field Resistant
Number	2 pcs. (Or None in Case of No Switch) · S (1 pc.)
