- Ball bushing bearing
- High non-rotating accuracy
- Long Life
- Shock absorber, adjusting bolt is standard
- Long stroke is available

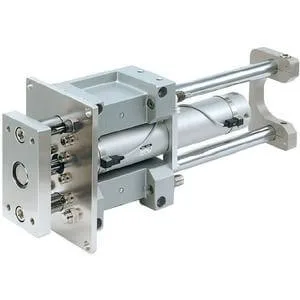

Series image. Appearance may vary by model and options.Pneumatic actuators
MGGL
MGGL, Standard External Guided Cylinder, Ball Bushing Bearing
Explore the features, model options and technical documentation for MGGL. Contact Pnoneks to select the full part number for your application.
SMC ·Guided Pneumatic Cylinders and Actuators
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting MGGL
Selecting MGGL: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Mounting, Bore Size, Thread, Stroke, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- MGGL
- Product group
- Pneumatic actuators
- Function
- Guided Pneumatic Cylinders and Actuators
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Mounting, Bore Size, Thread, Stroke, Auto Switch, Lead Wire or Pre-wired Connector, Number
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Mounting | B (Basic) · F (Front Flange) |
| Bore Size | 20 mm · 25 mm · 32 mm · 40 mm · 50 mm · 63 mm · 80 mm · 100 mm |
| Thread | Rc · TN (NPT) · TF (G) |
| Stroke | [75-400-1] · [401-500-1] · [501-600-1] · [601-800-1] · [801-1000-1] · [1001-1100-1] · [1101-1200-1] · [1201-1300-1] |
| Auto Switch | No Switch · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal · M9BA--Solid State Switch, Water Resist., 2 Wire, Horizontal · M9BAV--Solid State Switch, Water Resist., 2 Wire, Vertical · M9BV--Solid State Switch, Gen. Purpose, 2 Wire, Vertical · M9BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · M9BWV--Solid State Switch, 2-colour Indication, 2 Wire, Vertical · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal · M9NA--Solid State Switch, Water Resist., 3 Wire NPN, Horizontal · M9NAV--Solid State Switch, Water Resist, 3 Wire NPN, Perpendicular · M9NV--Solid State Switch, Gen. Purpose, 3 Wire NPN, Vertical · M9NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · M9NWV--Solid State Switch, 2-colour Indication, 3 Wire NPN, Vertical · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal · M9PA--Solid State Switch, Water Resist., 3 Wire PNP, Horizontal · M9PAV--Solid State Switch, Water Resist., 3 Wire PNP, Vertical · M9PV--Solid State Switch, Gen. Purpose, 3 Wire PNP, Vertical · M9PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · M9PWV--Solid State Switch, 2-colour Indication, 3 Wire PNP, Vertical · A90--Reed Switch, AC/DC Volt. <100, Horizontal · A90V--Reed Switch, AC/DC Volt. <100, Vertical · A93--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal · A93V--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Vertical · A96--Reed Switch, DC Volt. 4-8, LED, Horizontal · A96V--Reed Switch, DC Volt. 4-8, LED, Vertical · B54--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, Horizontal, 0.5 m · B59W--Reed Switch, 2-colour Indication, DC Volt. >5<24, LED, Horizontal, 0.5 m · B64--Reed Switch, DC Volt. >5<24, AC Volt. <200, Horizontal, 0.5 m · C73C--Reed Switch, DC Volt. >5<24, LED, Connector, 0.5 m · C80C--Reed Switch, AC/DC Volt. >5<24, Connector, 0.5 m · G59--Solid State Switch, Gen. Purpose, 3 Wire NPN, 0.5 m · G59F--Solid State Switch, Diagnostic, 4 Wire NPN, 0.5 m · G59W--Solid State Switch, 2-colour Indication, 3 Wire NPN, 0.5 m · G5P--Solid State Switch, Gen. Purpose, 3 Wire PNP, 0.5 m · G5PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, 0.5 m · H7BA--Solid State Switch, Water Resist., 2 Wire, Lead Wire · H7C--Solid State Switch, Gen. Purpose, 2 Wire, Connector, 0.5 m · H7NF--Solid State Switch, Diagnostic, 4 Wire NPN, Lead Wire, 0.5 m · K59--Solid State Switch, Gen. Purpose, 2 Wire, 0.5 m · K59W--Solid State Switch, 2-colour Indication, 2 Wire, 0.5 m |
| Lead Wire or Pre-wired Connector | 0.5 m (Or None in the Case of No Switch) · L (3 m) · M (1m) · N (No Lead Wire) · Z (5 m) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector) |
| Number | 2 pcs. (Or None in Case of No Switch) · S (1 pc.) |
