Designed to clamp anywhere
- Minimise the required space – Just 343 mm of length and 131.2 mm of width (Ø 63)
- Reduce the moment of inertia in your robot arm – As low as 3.3 kg (Ø 63)
- Rely on it – Clamping force up to 4000 N.

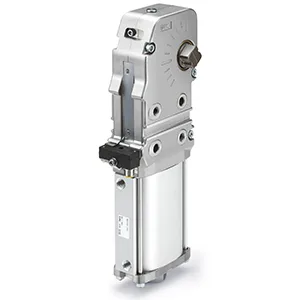

Series image. Appearance may vary by model and options.Pneumatic actuators
CKZ5T
Power Clamp Cylinder – CKZ5T
Explore the features, model options and technical documentation for CKZ5T. Contact Pnoneks to select the full part number for your application.
SMC ·Clamp Cylinders
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting CKZ5T
Selecting CKZ5T: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Product type, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- CKZ5T
- Product group
- Pneumatic actuators
- Function
- Clamp Cylinders
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Product type
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
More features
- Bore sizes (mm): 40, 50, 63, 80
- Spatter-proof construction
- 9 types of arm opening angles available: 15°, 30°, 45°, 60°, 75°, 90°, 105°, 120°, 135°
- Turck and P&F proximity sensors available.
| Parameter | Options / values |
|---|---|
| Product type | Power clamp · Clamp arm · With manual handle |
