CXW

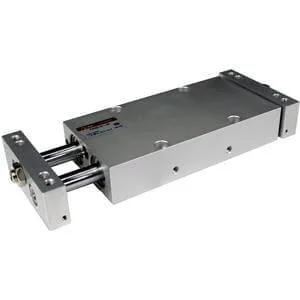

CXW, Dual Piston, Double Rod with Slide Unit, Built-in Shock Absorbers

Explore the features, model options and technical documentation for CXW. Contact Pnoneks to select the full part number for your application.

SMC ·Guided Pneumatic Cylinders and Actuators

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting CXW

Selecting CXW: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Cylinder, Bearing Type, Bore Size, Stroke, End Lock, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: CXW
Product group: Pneumatic actuators
Function: Guided Pneumatic Cylinders and Actuators
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Cylinder, Bearing Type, Bore Size, Stroke, End Lock, Auto Switch, Lead Wire or Pre-wired Connector, Number

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Slide unit series CXW can absorb energy in a wide range, in high-speed, low-load applications to low- speed, high-load applications, without requiring adjustments. The slide unit can be mounted on the housing or on the plate, depending on the application. Slide bearing or ball bushing bearing is available. Auto switches can be installed.

Selection fields published in the source
Parameter	Options / values
Cylinder	None · DB (Auto Switch/Housing Mount) · DP (Auto Switch/Plate Mount)
Bearing Type	L (Ball Bushing Bearing) · M (Slide Bearing)
Bore Size	10 mm · 16 mm · 20 mm · 25 mm · 32 mm
Stroke	25 mm · 50 mm · 75 mm · 100 mm · 125 mm · 150 mm · 175 mm · 200 mm
End Lock	None · R
Auto Switch	No Switch · A72--Reed Switch, AC Volt. <200, LED, Vertical, 0.5 m · A72H--Reed Switch, AC Volt. <200, LED, Horizontal, 0.5 m · A73--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Vertical, 0.5 m · A73C--Reed Switch, DC Volt. >5<24, LED, Connector, Vertical, 0.5 m · A73H--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal, 0.5 m · A76H--Reed Switch, DC Volt. 4-8, LED, Horizontal, 0.5 m · A80--Reed Switch, AC/DC Volt. <100, Vertical, 0.5 m · A80C--Reed Switch, AC/DC Volt. >5<24, Connector, Vertical, 0.5 m · A80H--Reed Switch, AC/DC Volt. <100, Horizontal, 0.5 m · E73A--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal, 0.5 m · E76A--Reed Switch, DC Volt. 4-8, LED, Horizontal, 0.5 m · E80A--Reed Switch, AC/DC Volt. <100, Horizontal, 0.5 m · F79--Solid State Switch, Gen. Purpose, 3 Wire NPN, Lead Wire, Horizontal, 0.5 m · F79F--Solid State Switch, Diagnostic, 4 Wire NPN, Lead Wire, Horizontal, 0.5 m · F79W--Solid State Switch, 2-colour Indication, 3 Wire NPN, Lead Wire, Horizontal, 0.5 m · F7BA--Solid State Switch, Water Resist., 2 Wire, Lead Wire, Horizontal · F7BAV--Solid State Switch, Water Resist., 2 Wire, Lead Wire, Vertical · F7BV--Solid State Switch, Gen. Purpose, 2 Wire, Lead Wire, Vertical, 0.5 m · F7BWV--Solid State Switch, 2-colour Indication, 3 Wire PNP, Lead Wire, Vertical, 0.5 m · F7NV--Solid State Switch, Gen. Purpose, 3 Wire NPN, Lead Wire, Vertical, 0.5 m · F7NWV--Solid State Switch, 2-colour Indication, 3 Wire NPN, Lead Wire, Vertical, 0.5 m · F7P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Lead Wire, Horizontal, 0.5 m · F7PV--Solid State Switch, Gen. Purpose, 3 Wire PNP, Lead Wire, Vertical, 0.5 m · F7PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Lead Wire, Horizontal, 0.5 m · J79--Solid State Switch, Gen. Purpose, 2 Wire, Lead Wire, Horizontal, 0.5 m · J79C--Solid State Switch, Gen. Purpose, 2 Wire, Connector, Vertical, 0.5 m · J79W--Solid State Switch, 2-colour Indication, 2 Wire, Lead Wire, Horizontal, 0.5 m
Lead Wire or Pre-wired Connector	0.5 m (Or None in the Case of No Switch) · L (3 m) · Z (5 m) · N (None) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector)
Number	2 pcs. (Or None in Case of No Switch) · S (1 pc.)
