CXSJ

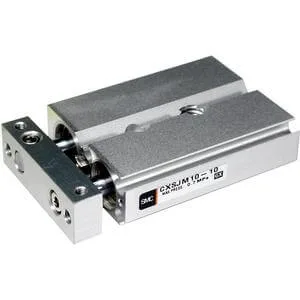

CXSJ, Dual Rod Cylinder, Compact Type

Explore the features, model options and technical documentation for CXSJ. Contact Pnoneks to select the full part number for your application.

SMC ·Guided Pneumatic Cylinders and Actuators

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting CXSJ

Selecting CXSJ: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Bearing Type, Bore Size, Thread Type, Piping, Stroke, Auto Switch, Lead Wire or Pre-wired Connector, Number, Option, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: CXSJ
Product group: Pneumatic actuators
Function: Guided Pneumatic Cylinders and Actuators
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Bearing Type, Bore Size, Thread Type, Piping, Stroke, Auto Switch, Lead Wire or Pre-wired Connector, Number, Option

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Dual rod cylinder, compact type
Slide bearing or ball bushing bearing
Bore size (mm): 6, 10, 15, 20, 25, 32
Standard strokes (mm): 10, 20, 30, 40, 50, 75, 100
Auto switches available
Made to Order additionally released.

Selection fields published in the source
Parameter	Options / values
Bearing Type	L (Ball Bush Bearing) · M (Slide Bearing)
Bore Size	6 mm · 10 mm · 15 mm · 20 mm · 25 mm · 32 mm
Thread Type	Rc (or M Thread for 6 to 25 Bore) · TN (NPT) · TF (G)
Piping	Standard Porting · P (Axial Direction Ported)
Stroke	10 mm · 20 mm · 30 mm · 40 mm · 50 mm · 75 mm · 100 mm
Auto Switch	No Switch · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal, 0.5 m · M9BA--Solid State Switch, Water Resist., 2 Wire, Horizontal · M9BV--Solid State Switch, Gen. Purpose, 2 Wire, Vertical, 0.5 m · M9BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · M9BWV--Solid State Switch, 2-colour Indication, 2 Wire, Vertical · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal, 0.5 m · M9NV--Solid State Switch, Gen. Purpose, 3 Wire NPN, Vertical, 0.5 m · M9NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · M9NWV--Solid State Switch, 2-colour Indication, 3 Wire NPN, Vertical · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal, 0.5 m · M9PV--Solid State Switch, Gen. Purpose, 3 Wire PNP, Vertical, 0.5 m · M9PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · M9PWV--Solid State Switch, 2-colour Indication, 3 Wire PNP, Vertical · A90--Reed Switch, AC/DC Volt. <100, Horizontal, 0.5 m · A90V--Reed Switch, AC/DC Volt. <100, Vertical, 0.5 m · A93--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal, 0.5 m · A93V--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Vertical, 0.5 m · A96--Reed Switch, DC Volt. 4-8, LED, Horizontal, 0.5 m · A96V--Reed Switch, DC Volt. 4-8, LED, Vertical, 0.5 m
Lead Wire or Pre-wired Connector	0.5 m (Or None in the Case of No Switch) · M (1m) · L (3 m) · Z (5 m) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector) · LAPC (3.0 m Cord Length, M8-3 Pin Connector) · LDPC (3.0 m Cord Length, M12-4 Pin Connector)
Number	2 pcs. (Or None in the Case of No Switch) · 3 pcs. · 4 pcs. · S (1 pc.)
Option	None · XB6 (Heat resistant cylinder [–10 to 150°C]) · XB13 [Low Speed Cylinder (5 to 50 mm/s)] · XC6 (Made of stainless steel) · XC22 (Fluororubber Seal)
