CXSWM

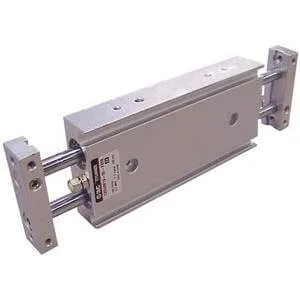

CXSWM, Dual Rod Cylinder, Double Rod, Slide Bearing

Explore the features, model options and technical documentation for CXSWM. Contact Pnoneks to select the full part number for your application.

SMC ·Guided Pneumatic Cylinders and Actuators

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting CXSWM

Selecting CXSWM: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Bore Size, Thread, Stroke, Auto Switch, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: CXSWM
Product group: Pneumatic actuators
Function: Guided Pneumatic Cylinders and Actuators
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Bore Size, Thread, Stroke, Auto Switch, Number

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Dual rod cylinder: double rod
Bore sizes: 6, 10, 15, 20, 25, 32 (mm)
Strokes from 10mm through 100mm depending upon bore size
Variety of switches and a variety of lead wire lengths

Selection fields published in the source
Parameter	Options / values
Bore Size	6 mm · 10 mm · 15 mm · 20 mm · 25 mm · 32 mm
Thread	Ø6-Ø20 Bore: M Thread; Ø25, Ø32 Bore: Rc 1/8 · TN (Ø25, Ø32 Bore: NPT 1/8) · TF (Ø25, Ø32 Bore: G 1/8)
Stroke	10 mm · 20 mm · 30 mm · 40 mm · 50 mm · 75 mm · 100 mm
Auto Switch	No Switch · Y59A--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal, 0.5 m · Y59AL--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal, 3 m · Y59B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal, 0.5 m · Y59BL--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal, 3 m · Y69A--Solid State Switch, Gen. Purpose, 3 Wire NPN, Vertical, 0.5 m · Y69AL--Solid State Switch, Gen. Purpose, 3 Wire NPN, Vertical, 3 m · Y69B--Solid State Switch, Gen. Purpose, 2 Wire, Vertical, 0.5 m · Y69BL--Solid State Switch, Gen. Purpose, 2 Wire, Vertical, 3 m · Y7BAL--Solid State Switch, Water Resist., 2 Wire, Horizontal, 3 m · Y7BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal, 0.5 m · Y7BWL--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal, 3 m · Y7BWV--Solid State Switch, 2-colour Indication, 2 Wire, Vertical, 0.5 m · Y7BWVL--Solid State Switch, 2-colour Indication, 2 Wire, Vertical, 3 m · Y7NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal, 0.5 m · Y7NWL--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal, 3 m · Y7NWV--Solid State Switch, 2-colour Indication, 3 Wire NPN, Vertical, 0.5 m · Y7NWVL--Solid State Switch, 2-colour Indication, 3 Wire NPN, Vertical, 3 m · Y7P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal, 0.5 m · Y7PL--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal, 3 m · Y7PV--Solid State Switch, Gen. Purpose, 3 Wire PNP, Vertical, 0.5 m · Y7PVL--Solid State Switch, Gen. Purpose, 3 Wire PNP, Vertical, 3 m · Y7PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal, 0.5 m · Y7PWL--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal, 3 m · Y7PWV--Solid State Switch, 2-colour Indication, 3 Wire PNP, Vertical, 0.5 m · Y7PWVL--Solid State Switch, 2-colour Indication, 3 Wire PNP, Vertical, 3 m · Z73--Reed Switch, AC/DC Volt., 2 Wire, LED, 0.5 m · Z73L--Reed Switch, AC/DC Volt., 2 Wire, LED, 3 m · Z76--Reed Switch, DC Volt., 3 Wire, LED, 0.5 m · Z76L--Reed Switch, DC Volt., 3 Wire, LED, 3 m · Z80--Reed Switch, AC/DC Volt., 2 Wire, 0.5 m · Z80L--Reed Switch, AC/DC Volt., 2 Wire, 3 m
Number	2 pcs. (Or None in the Case of No Switch) · S (1 pc.)
