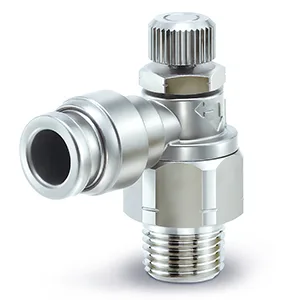

Speed Controllers, Stainless Steel, Simple Handle, Metal Body, Elbow - ASG New

Explore the features, model options and technical documentation for ASG New. Contact Pnoneks to select the full part number for your application.

SMC ·Actuator Accessories

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting ASG New

Selecting ASG New: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Body Size, Control Type, Port Size, Applicable Tubing O.D., Option, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: ASG New
Product group: Pneumatic actuators
Function: Actuator Accessories
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Body Size, Control Type, Port Size, Applicable Tubing O.D., Option

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

No environment can stand up to it

Get environmental resistance - All stainless steel exterior design
Use it in high temperature applications - Maximum operating temperature of 150 °C
Gain compactness and lightness - Height of only 28.9 mm and weight of 12 g for the smallest model.

More features

Stainless Steel 304 and 316
Port Size: M5, U10/32, 1/8, 1/4, 3/8, 1/2
Applicable Tubing O.D.: Ø 4 to Ø 12 mm and Ø 5/32" to Ø 1/2
Operating Pressure Range: 0.1 to 1 MPa.

Selection fields published in the source
Parameter	Options / values
Body Size	1 (M5 Basis) · 2 (1/8, 1/4 Standard) · 3 (3/8 Standard) · 4 (1/2 Standard)
Control Type	0 (Meter-out) · 1 (Meter-in)
Port Size	M5 (M5 x 0.8) · 01 (R1/8) · G01 (G1/8) · 02 (R1/4) · G02 (G1/4) · 03 (R3/8) · G03 (G3/8) · 04 (R1/2) · G04 (G1/2) · U10/32 (10-32UNF) · N01 (NPT1/8) · N02 (NPT1/4) · N03 (NPT3/8) · N04 (NPT1/2)
Applicable Tubing O.D.	04 (Ø4 mm) · 06 (Ø6 mm) · 08 (Ø8 mm) · 10 (Ø10 mm) · 12 (Ø12 mm) · 03 (ø5/32) · 07 (ø1/4) · 09 (ø5/16) · 11 (Ø3/8") · 13 (Ø1/2") · 11 (Ø3/8\") · 13 (Ø1/2\")
Option	Without sealant · S (With Sealant)
