Go big
- Increase your machine robustness – Up to 700N lateral load allowable
- Cut your installation costs - Lightweight design thanks to the aluminium die-cast covers
- Reduce your piping effort - Cushion and piping port are placed on the same side.

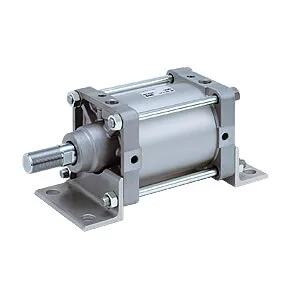

Series image. Appearance may vary by model and options.Pneumatic actuators
CS2
Air Cylinder - CS2
Explore the features, model options and technical documentation for CS2. Contact Pnoneks to select the full part number for your application.
SMC ·Linear Actuators and Linear Acting Cylinders
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting CS2
Selecting CS2: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Rod type, Stroke type, Cylinder type, Special environment, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- CS2
- Product group
- Pneumatic actuators
- Function
- Linear Actuators and Linear Acting Cylinders
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Rod type, Stroke type, Cylinder type, Special environment
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
More features
- Bore sizes (mm): 125, 140, 160, 180, 200, 250, 320
- Strokes up to 1600 mm
- Air cushion and bumper cushion combined structure
- Axial centralised piping type available
- Available variations for non-standard environments: secondary batteries manufacturing
- Cushion seals are replaceable.
| Parameter | Options / values |
|---|---|
| Rod type | Single rod · Double rod |
| Stroke type | Standard · Dual stroke · Adjustable stroke - retraction type |
| Cylinder type | Standard · Smooth · Axial centralised piping |
| Special environment | Not required · Battery Manufacturing |
