The all rounder
- Fit CM2 to your application requirements – big range of variations
- Reduce the total length – when using female rod end and/or with boss-cut type
- Improve your mounting freedom – Various mounting bracket options.

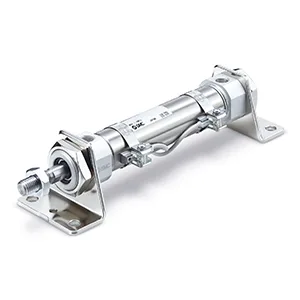

Series image. Appearance may vary by model and options.Pneumatic actuators
CM2-Z1
Round Air Cylinder - CM2-Z1
Explore the features, model options and technical documentation for CM2-Z1. Contact Pnoneks to select the full part number for your application.
SMC ·Linear Actuators and Linear Acting Cylinders
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting CM2-Z1
Selecting CM2-Z1: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Rod Type, Cylinder Acting, Cylinder type, Special environment, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- CM2-Z1
- Product group
- Pneumatic actuators
- Function
- Linear Actuators and Linear Acting Cylinders
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Rod Type, Cylinder Acting, Cylinder type, Special environment
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
More features
- Bore sizes (mm): 20, 25, 32, 40
- Strokes up to 1000 mm
- Double-acting, single rod
- Rubber cushion or air cushion
- Available variations for non-standard environments: Food Manufacturing Industry
- Auto switch capable.
| Parameter | Options / values |
|---|---|
| Rod Type | Single Rod · Double rod |
| Cylinder Acting | Double Acting · Single acting |
| Cylinder type | Standard · High durability · Non-rotating · Direct Mounting · High speed-high frequency |
| Special environment | Not required · Dust resistant · Food Industry |
