- Low friction, metal seal cylinders.
- Bore sizes: 10, 16, 20, 25, 30, 40mm.
- Available in a lateral load resisting type.
- Long service life of 10,000 km for 100 million full cycles.

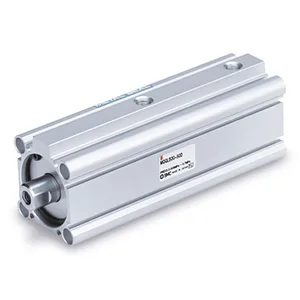

Series image. Appearance may vary by model and options.Pneumatic actuators
MQQ
MQQ, Compact Cylinder, Metal Seal, Low Friction
Explore the features, model options and technical documentation for MQQ. Contact Pnoneks to select the full part number for your application.
SMC ·Linear Actuators and Linear Acting Cylinders
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting MQQ
Selecting MQQ: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Style, Mounting, Bore Size, Port Thread, Stroke, Body Option, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- MQQ
- Product group
- Pneumatic actuators
- Function
- Linear Actuators and Linear Acting Cylinders
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Style, Mounting, Bore Size, Port Thread, Stroke, Body Option
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Style | L (Anti Lateral Load (Ball Bushing Built-in)] · T (Standard) |
| Mounting | B [Through Hole, Both Ends Tapped (Standard)] · D (Double Clevis) · F (Front Flange) · G (Rear Flange) · L (Foot) |
| Bore Size | 10 mm · 16 mm · 20 mm · 25 mm · 30 mm · 40 mm |
| Port Thread | M Thread ø10 to ø20, RC ø25 to ø40 · TN (NPT) · TF (G) |
| Stroke | [10-40-1] · [41-60-1] · [61-100-1] |
| Body Option | Standard (Rod End Female Thread) · M (Rod End Male Thread) |
