- Compact type (reduction of the interference with the body and the clamping surface area).
- Bore size of 32 mm.
- Optional locking mechanism available.
- Guide pins for workpieces with ø 8 to ø 20 hole diameters.
- Compatible with mounting magnetic field resistant auto switch (D-P3DW & D-P4DW).

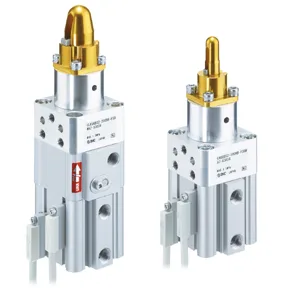

Series image. Appearance may vary by model and options.Pneumatic actuators
C(L)KQG*32
C(L)KQG*32, Pin Clamp Cylinder, Built-in Standard Magnet, Compact Type
Explore the features, model options and technical documentation for C(L)KQG*32. Contact Pnoneks to select the full part number for your application.
SMC ·Clamp Cylinders
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting C(L)KQG*32
Selecting C(L)KQG*32: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Type, Mounting Surface, Guide Pin Diameter, Guide Pin Shape, Clamp Arm Position, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- C(L)KQG*32
- Product group
- Pneumatic actuators
- Function
- Clamp Cylinders
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Type, Mounting Surface, Guide Pin Diameter, Guide Pin Shape, Clamp Arm Position, Auto Switch, Lead Wire or Pre-wired Connector, Number
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Type | None · L (With Lock) |
| Mounting Surface | A (Same Side as Port Location) · B (90° from Port Location) · C (180° from Port Location) · D (270° from Port Location) |
| Guide Pin Diameter | 075 (7.5mm) · 076 (7.6mm) · 077 (7.7mm) · 078 (7.8mm) · 079 (7.9mm) · 080 (8.0mm) · 095 (9.5mm) · 096 (9.6mm) · 097 (9.7mm) · 098 (9.8mm) · 099 (9.9mm) · 100 (10.0mm) · 105 (10.5mm) · 106 (10.6mm) · 107 (10.7mm) · 108 (10.8mm) · 109 (10.9mm) · 110 (11.0mm) · 115 (11.5mm) · 116 (11.6mm) · 117 (11.7mm) · 118 (11.8mm) · 119 (11.9mm) · 120 (12.0mm) · 125 (12.5mm) · 126 (12.6mm) · 127 (12.7mm) · 128 (12.8mm) · 129 (12.9mm) · 130 (13.0mm) · 135 (13.5mm) · 136 (13.6mm) · 137 (13.7mm) · 138 (13.8mm) · 139 (13.9mm) · 140 (14.0mm) · 145 (14.5mm) · 147 (14.7mm) · 148 (14.8mm) · 149 (14.9mm) · 150 (15.0mm) · 155 (15.5mm) · 157 (15.7mm) · 158 (15.8mm) · 159 (15.9mm) · 160 (16.0mm) · 175 (17.5mm) · 177 (17.7mm) · 178 (17.8mm) · 179 (17.9mm) · 180 (18.0mm) · 195 (19.5mm) · 197 (19.7mm) · 198 (19.8mm) · 199 (19.9mm) · 200 (20.0mm) |
| Guide Pin Shape | R (Round Type) · D (Diamond Type) |
| Clamp Arm Position | A (Same Direction as Port) · B (90° From Port) · C (180° From Port) · D (270° From Port) |
| Auto Switch | No Switch · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal · M9BA--Solid State Switch, Water Resist., 2 Wire, Horizontal · M9BAV--Solid State Switch, Water Resist., 2 Wire, Vertical · M9BV--Solid State Switch, Gen. Purpose, 2 Wire, Vertical · M9BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · M9BWV--Solid State Switch, 2-colour Indication, 2 Wire, Vertical · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal · M9NA--Solid State Switch, Water Resist., 3 Wire NPN, Horizontal · M9NAV--Solid State Switch, Water Resist, 3 Wire NPN, Perpendicular · M9NV--Solid State Switch, Gen. Purpose, 3 Wire NPN, Vertical · M9NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · M9NWV--Solid State Switch, 2-colour Indication, 3 Wire NPN, Vertical · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal · M9PA--Solid State Switch, Water Resist., 3 Wire PNP, Horizontal · M9PAV--Solid State Switch, Water Resist., 3 Wire PNP, Vertical · M9PV--Solid State Switch, Gen. Purpose, 3 Wire PNP, Vertical · M9PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · M9PWV--Solid State Switch, 2-colour Indication, 3 Wire PNP, Vertical · A90--Reed Switch, AC/DC Volt. <100, Horizontal · A90V--Reed Switch, AC/DC Volt. <100, Vertical · A93--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal · A93V--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Vertical · A96--Reed Switch, DC Volt. 4-8, LED, Horizontal · A96V--Reed Switch, DC Volt. 4-8, LED, Vertical · P3DWA--Solid State Switch, 2-colour Indication, Magnetic Field Resist., 2 Wire · P4DW--Solid State Switch, 2-colour Indication, Magnetic Field Resist., 2 Wire |
| Lead Wire or Pre-wired Connector | 0.5 m (Or None in the Case of No Switch) · L (3 m) · M (1m) · Z (5 m) · SC (0.3 m Cord Length, M12-4 Pin Connector, 3 & 4 Out) · SE (0.3 m Cord Length, M12-4 Pin Connector, 1 & 4 Out) |
| Number | 2 pcs. (Or None in Case of No Switch) · S (1 pc.) |
