C(D)LM2

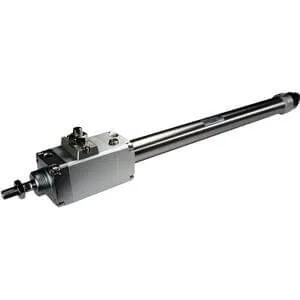

C(D)LM2, Air Cylinder, Double Acting, Single Rod, Fine Lock

Explore the features, model options and technical documentation for C(D)LM2. Contact Pnoneks to select the full part number for your application.

SMC ·Specialty Actuators

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting C(D)LM2

Selecting C(D)LM2: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Magnet, Style, Mounting, Bore Size, Stroke, Rod Boot, Lock Style, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: C(D)LM2
Product group: Pneumatic actuators
Function: Specialty Actuators
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Magnet, Style, Mounting, Bore Size, Stroke, Rod Boot, Lock Style, Auto Switch, Lead Wire or Pre-wired Connector, Number

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Fine lock cylinder, CLM2
Double acting, single rod
10 mounting options available
Air hydro option available
Auto switch capable

Selection fields published in the source
Parameter	Options / values
Magnet	None · D (Built-in)
Style	Air Pressure Style · H (Air hydro)
Mounting	B (Basic) · BZ (Boss-cut/Basic) · C (Single Clevis) · D (Double Clevis) · E (Integral Clevis) · F (Front Flange) · FZ (Boss-cut Flange) · G (Rear Flange) · L (Axial Foot) · T (Rear Trunnion)
Bore Size	20 mm · 25 mm · 32 mm · 40 mm
Stroke	[25-34-1] · [35-1000-1] · [1001-1500-1] · [1501-2000-1]
Rod Boot	None · J (Nylon Tarpaulin) · K (Heat Resistant Tarpaulin)
Lock Style	E (Spring Lock (Exhaust Lock)) · P (Pneumatic Lock (Pressure Lock) · D (Spring and Pneumatic Locking)
Auto Switch	No Switch · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal, 0.5 m · M9BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal, 0.5 m · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal, 0.5 m · M9NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal, 0.5 m · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal, 0.5 m · M9PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal, 0.5 m · A33A--Reed Switch, DC Volt. >5<24, LED, Terminal · A34A--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, Terminal · A44A--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, DIN Terminal · A90--Reed Switch, AC/DC Volt. <100, Horizontal, 0.5 m · A93--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal, 0.5 m · A96--Reed Switch, DC Volt. 4-8, LED, Horizontal, 0.5 m · B54--Reed Switch, DC Volt. >5<24, AC Volt. <200, LED, Horizontal, 0.5 m · B59W--Reed Switch, 2-colour Indication, DC Volt. >5<24, LED, Horizontal, 0.5 m · B64--Reed Switch, DC Volt. >5<24, AC Volt. <200, Horizontal, 0.5 m · C73C--Reed Switch, DC Volt. >5<24, LED, Connector, 0.5 m · C80C--Reed Switch, AC/DC Volt. >5<24, Connector, 0.5 m · G39A--Solid State Switch, Gen. Purpose, 3 Wire NPN, Terminal Conduit · H7C--Solid State Switch, Gen. Purpose, 2 Wire, Connector, 0.5 m · H7NF--Solid State Switch, Diagnostic, 4 Wire NPN, Lead Wire, 0.5 m · K39A--Solid State Switch, Gen. Purpose, 2 Wire, Terminal Conduit · H7BA--Solid State Switch, Water Resist., 2 Wire, Lead Wire
Lead Wire or Pre-wired Connector	0.5 m (Or None in the Case of No Switch) · M (1m) · L (3 m) · Z (5 m) · N (No Lead Wire) · SAPC (0.5 m Cord Length, M8-3 Pin Connector) · SBPC (0.5 m Cord Length, M8-4 Pin Connector) · SDPC (0.5 m Cord Length, M12-4 Pin Connector) · MAPC (1.0 m Cord Length, M8-3 Pin Connector) · MBPC (1.0 m Cord Length, M8-4 Pin Connector) · MDPC (1.0 m Cord Length, M12-4 Pin Connector)
Number	2 pcs. (Or None in Case of No Switch) · S (1 pc.)
